DESKTOP CARD DISPENSER

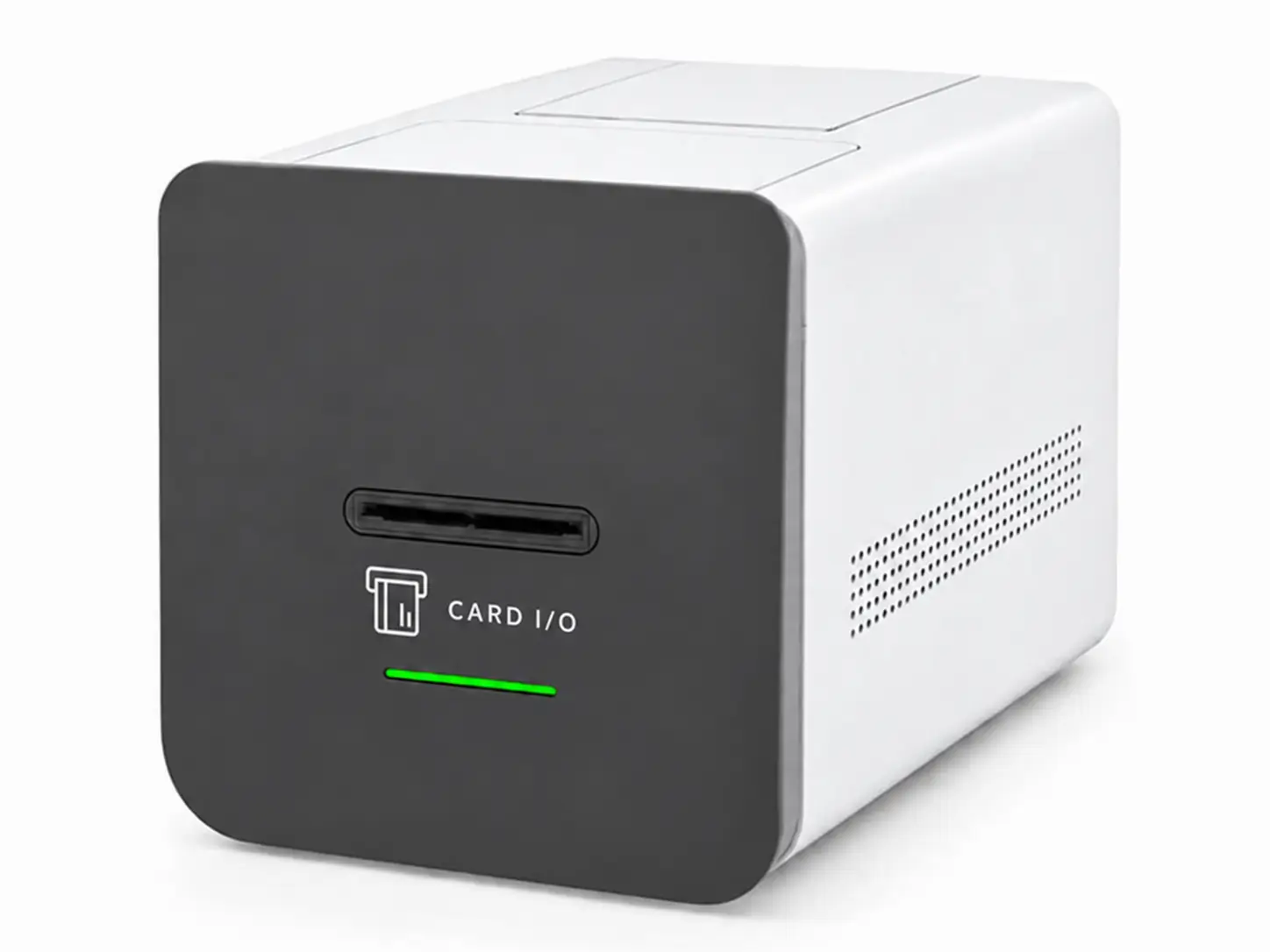

SNR-CD760 Desktop Key Card Dispenser

Desktop card issuing and collection unit designed for hotel front desks and self-service applications, with optional card recirculation, third-party hotel lock encoder integration and PC mainboard configuration.

Optional card recirculation and PC mainboard configurations are available according to project requirements.

Desktop Card Issuing for Hotel & Self-Service Applications

SNR-CD760 is a desktop card issuing and collection unit designed for hotel front desks, self check-in systems and service terminals. It supports automatic card dispensing, front card feeding and card collection, while optional recirculation allows returned cards to be reused in applicable workflows.

Internal mounting space is reserved for third-party card readers or hotel lock-system encoders, making the unit suitable for integration with different hotel key card systems and project architectures.

KEY FEATURES

Flexible Desktop Card Issuing for Hotel & Self-Service Systems

Configure card dispensing, collection, recirculation and hotel encoder integration according to your project workflow.

01 — Desktop Form Factor

Compact enclosed design for hotel front desks, self check-in counters and other desktop card issuing applications.

02 — Card Dispensing & Collection

Supports automatic card dispensing, front card intake and card collection for unattended or assisted service workflows.

03 — Hotel Encoder Integration

Reserved internal mounting space allows integration of compatible hotel lock-system encoders or RFID reader modules.

04 — Flexible Configuration

Card recirculation, RFID reader and PC mainboard options can be configured according to project requirements.

CONFIGURATION OPTIONS

Choose the Right Card Handling Configuration

SNR-CD760 can be configured for different card handling workflows. Select the appropriate version based on whether returned cards need to be collected separately or reused for future card issuance.

Standard Collection Configuration

Dispense + Intake + Collection: Designed for applications where issued cards can be returned and collected into a dedicated collection box.

Best suited for:

Recirculating Configuration

Dispense + Intake + Collect + Recirculate: Adds card recirculation capability for applications where returned cards need to be reused for subsequent card issuance.

Best suited for:

Flexible Integration for Different Projects

Hotel Lock Encoder

Reserved mounting space for compatible third-party hotel lock-system encoders.

RFID Reader / Writer

Optional Mifare 1, ISO14443A and ISO15693 reader/writer module.

PC Mainboard

Optional PC mainboard/controller configuration with CPU, memory, storage, OS and I/O confirmed according to project requirements.

TECHNICAL SPECIFICATIONS

SNR-CD760 Technical Specifications

Key card handling, communication, electrical and mechanical specifications for desktop card issuing and system integration.

Card Handling

Card Size: 85 ±0.5 × 54 ±0.5 mm
Card Thickness: 0.76–0.80 mm
Card Material: Plastic / polyester cards
Input Capacity: Approx. 100 cards (0.76 mm basis)
Collection Box: Approx. 30 cards
Card Handling: Dispense, intake, collect; recirculation optional

Communication & Integration

Communication: RS232
Host OS: Windows / Linux
Optional Reader: Mifare 1 / ISO14443A / ISO15693
Encoder Integration: Reserved mounting space for hotel lock encoder
Status Alerts: Low/empty card, collection full, dispense fault
Security Gate: Mechanical gate + controllable electric gate

Electrical

Mechanical & Environment

APPLICATIONS & INTEGRATION

Desktop Key Card Issuing for Hotel & Self-Service Systems

The SNR-CD760 supports desktop card issuing, card collection and optional recirculation for hotel front desks, self check-in systems and other card-based service terminals.

Typical Applications

Hotel Front-Desk Key Card Issuing

Automated room key card issuing for hotel reception desks and assisted check-in environments.

Hotel Self Check-in

Desktop card dispensing and encoder integration for hotel self check-in systems and compact service terminals.

Self Check-out & Card Return

Front card intake and collection for hotel check-out and reusable key card return workflows.

Visitor & Membership Card Issuing

Desktop card issuing and collection for visitor, membership and other reusable card applications.

NTEGRATION WORKFLOW

Hotel Key Card Integration Workflow

01 Guest Check-in

02 Dispense Card

03 Move Card to Encoder Position

04 Hotel Encoder Writes Room Key Data

05 Issue Card to Guest

Integration Note:

SNR-CD760 handles card movement and positioning. Room-key encoding is performed by the third-party hotel lock-system encoder and its corresponding software/SDK.

Learn more about hotel self check-in hardware integration and key card encoding workflows.

Built for System Integration

RS232 Communication: Host system controls card handling through RS232 communication.
Encoder Installation: Reserved internal space supports project-based installation of compatible hotel lock encoders.
Configuration Support: Recirculation, RFID reader and optional PC mainboard requirements can be confirmed according to the project.

Technical Resources: SDK / API · Communication Protocol · Test Tools · 3D Drawings

FAQ

Frequently Asked Questions About SNR-CD760

Can SNR-CD760 issue and collect hotel key cards?

Yes. SNR-CD760 supports automatic card dispensing, front card intake and card collection. A recirculating configuration is also available for projects that need returned cards to be reused.

Can a hotel lock-system encoder be installed inside the unit?

The unit reserves internal mounting space for compatible third-party hotel lock-system encoders. Final compatibility and installation should be confirmed according to the encoder dimensions and project requirements.

Does SNR-CD760 encode hotel room key cards itself?

SNR-CD760 handles card movement and positioning. Hotel room-key data is normally written by the hotel lock-system encoder using its corresponding software or SDK.

Which RFID technologies are available?

An optional reader/writer module supporting Mifare 1, ISO14443A and ISO15693 is available.

What is the card capacity?

The input capacity is approximately 100 cards based on 0.76 mm card thickness, while the collection box holds approximately 30 cards.

Does it support card recycling?

Yes. Card recirculation is available as an optional configuration for projects where returned cards need to be reused.

Can a PC mainboard be integrated?

Yes. A PC mainboard/controller is optional. CPU, memory, storage, operating system and I/O should be confirmed according to the project.

Which operating systems are supported?

Windows and Linux host systems.
