CARD DISPENSER & READER WRITER

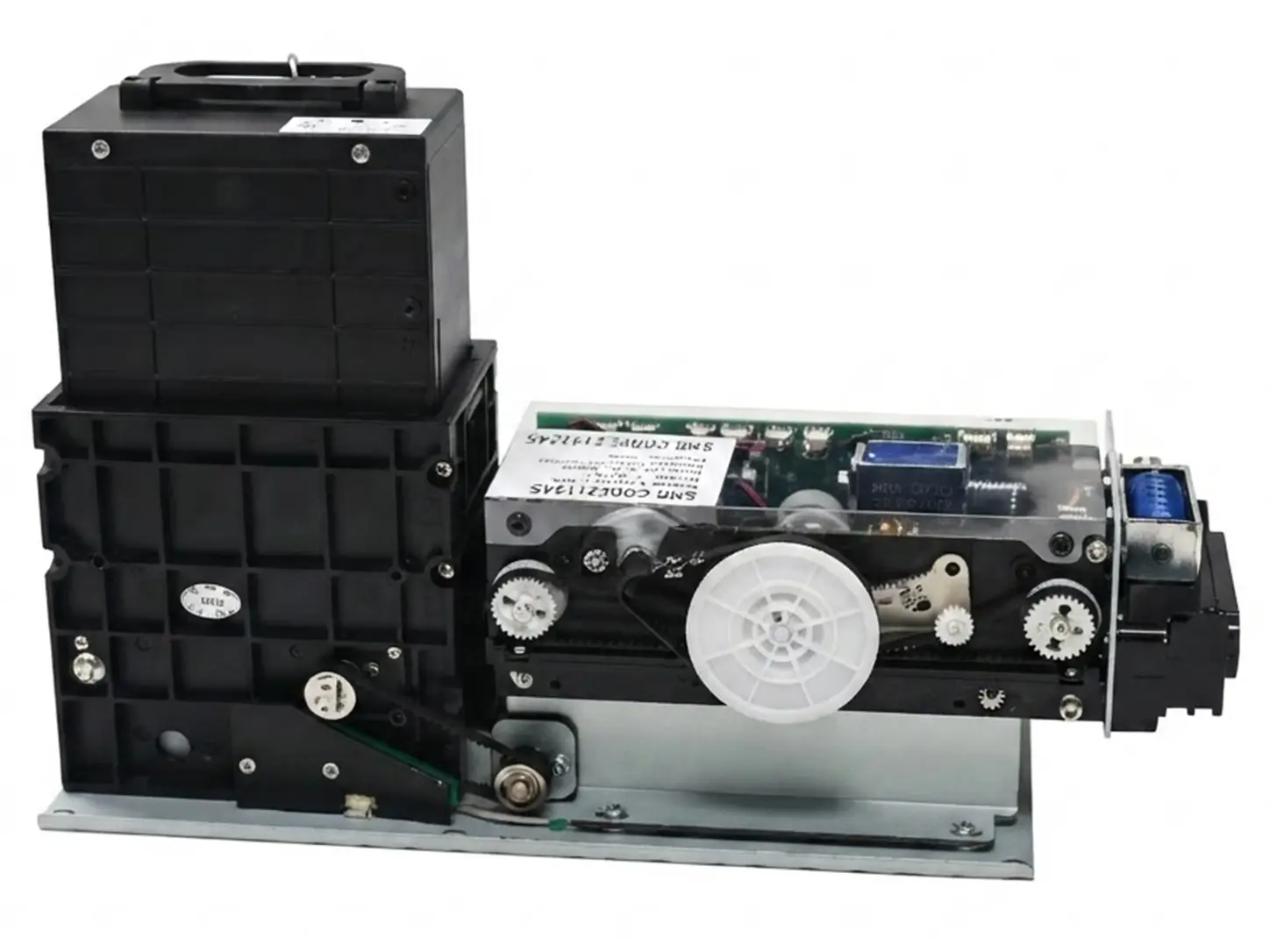

SNR-CD212-M8 Motorized Card Dispenser & Reader Writer
Integrated card dispensing, reading, writing and recycling module supporting contact IC, RFID and magnetic cards for automated self-service systems.
- Supported Cards - Contact IC / RFID / Magnetic
- Communication - RS232
- Card Capacity -110 Standard / 150 Optional
- Recycle Box - Approx. 10 Cards
SDK/API · Protocol · Test Tool · 3D Drawings Available
CARD PROCESSING
Integrated Card Issuing, Reading & Recycling
SNR-CD212-M8 combines motorized card dispensing, multi-technology card reading/writing, card recycling and status monitoring in one module for unattended self-service systems.
Card Issuing & Reading/Writing
Automatically dispenses cards and supports integrated card reading and writing for automated card issuance applications.
IC / RFID / Magnetic Support
Supports contact IC cards, 13.56MHz RFID cards and magnetic cards for different card-based kiosk applications.
Automatic Card Collection
A removable recycle box automatically collects returned or inserted cards for controlled card handling and recycling.
Intelligent Status Monitoring
Monitors low-card, empty-card, recycle-box full and dispensing fault conditions to support reliable unattended operation.
TECHNICAL SPECIFICATIONS
SNR-CD212-M8 Technical Specifications
The SNR-CD212-M8 motorized card dispenser reader writer is designed for reliable integration into unattended self-service kiosks and embedded terminals.
General & Electrical
Communication Interface
RS232 Serial Interface
Operating Voltage
24V DC ±5%
Recommended Power Supply
24V / 4A
Dynamic Peak Current
< 4A
Static Current
100mA
Operating Temperature
0°C to 45°C
Operating Humidity
30%–90% RH, non-condensing
Weight
Approx. 3.0 kg
Card Handling
Card Size
85 ±0.5 × 54 ±0.5 mm, Tickness 0.7–0.9 mm
Card Material
PVC / Polyester / Paper
Supported Cards
Contact IC / RFID / Magnetic
Standard Card Box
110 cards @ 0.76 mm / 75 cards @ Embossed Card
Optional Expanded Box
150 standard / 110 embossed
Recycle Box Capacity
10 cards
Low Card Reminder
20 cards remaining
Card Stop Positions
Multiple programmable positions
Note: Card capacity may vary depending on card thickness, embossing and selected reader/writer configuration

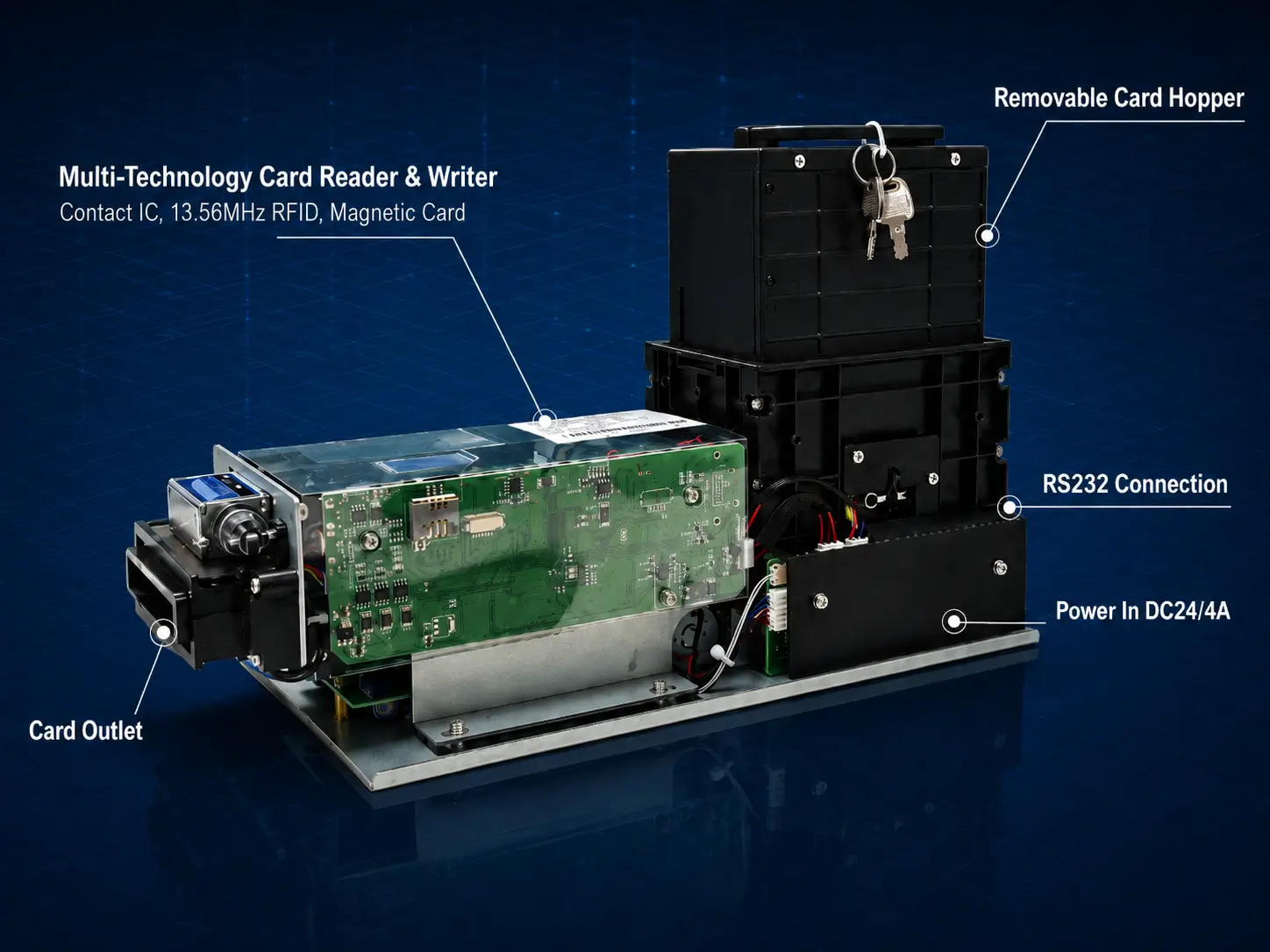

SYSTEM INTEGRATION
Flexible Card Processing Integration for Kiosk Systems
Connect the SNR-CD212-M8 to a kiosk controller through RS232 and configure the required card reader/writer technology according to your application.
01 — RS232 Communication
Connect the SNR-CD212-M8 to an industrial PC, embedded controller or kiosk system through an RS232 serial interface.
02 — Multi-Technology Card Processing
Configure the module for contact IC, 13.56MHz RFID or magnetic card processing according to project requirements.
03 — Protocol Command Control
Control card issuing, reading/writing, recycling and device status through protocol commands from the host system.
Need to confirm card compatibility?
Send us your card type, card sample specifications and required reader/writer technology. We can help evaluate the suitable configuration for your project
APPLICATIONS
Built for Automated Card Issuing Applications
Designed for self-service systems that require automatic card dispensing, multi-technology card processing and controlled card collection.
Hotel Self Check-in
Issue and encode guest room cards through unattended hotel check-in kiosks, with card collection and recycling support.
Ticketing & Transportation
Automate card issuing and processing for ticket vending, transportation and passenger self-service terminals.
Banking & Financial Kiosks
Support automated card issuing and multi-technology card processing in banking and financial self-service terminals.
Visitor & Access Management
Issue and process temporary cards for visitor registration, access control and unattended credential management.
ENGINEERING SUPPORT
Complete Resources for Faster Kiosk Integration
From mechanical installation to software development, we provide the technical resources your engineering team needs to integrate the SNR-CD212-M8 into self-service kiosk systems.
SDK / API
SDK/API resources help developers integrate card-handling functions into kiosk applications and host systems.
For application development
Communication Protocol
Command and communication references support RS232 control, card operations and device status handling.
For device control
Test Tools
Test utilities help engineers verify communication, card operations and module functions during development.
For testing & debugging
3D Drawings
Mechanical drawings support installation-space evaluation, mounting design and kiosk enclosure development.
For mechanical integration
FAQ
Frequently Asked Questions About SNR-CD212-M8
What card technologies does the SNR-CD212-M8 support?
The SNR-CD212-M8 supports multiple card technologies, including contact IC cards, 13.56MHz RFID cards and magnetic stripe cards, allowing one module to handle card issuing and card data processing in self-service systems.
What card sizes and thicknesses are supported?
The module is designed for cards measuring 85 ±0.5 × 54 ±0.5mm, with a supported thickness of 0.7–0.9mm.
What is the card capacity of the SNR-CD212-M8?
The standard card box holds approximately 110 standard 0.76mm cards. An optional expanded card box can increase the capacity to approximately 150 standard cards. Actual capacity varies depending on card thickness and whether embossed cards are used.
Can the SNR-CD212-M8 recycle or collect cards?
Yes. The module supports card recycling and includes a recycle box with a capacity of approximately 8–10 cards, allowing rejected, retained or designated cards to be collected during unattended operation.
Does the module support different card stop positions?
Yes. The SNR-CD212-M8 supports multiple programmable card stop positions, allowing cards to be positioned according to the required reading, writing or card-handling process.
What communication interface is available?
The SNR-CD212-M8 uses RS232 communication for connection with the kiosk controller or industrial PC, allowing the host system to control card issuing, reading/writing, recycling and device operations.
What status monitoring is available for unattended operation?
The module provides status and alarm feedback for conditions such as low cards, empty card box, recycle box full and card dispensing faults, helping the kiosk application monitor device operation and handle exceptions.
RELATED PRODUCTS
Explore Other Card Handling Modules
Compare SNROKIOSK card handling modules for dispensing, collecting, recycling and card reading requirements.
SNR-K750L Card Dispenser & Recycling Module
Card dispensing, collecting and recycling module designed for reusable card workflows in self-service kiosks.
SNR-K750C Card Dispenser with Collection
Motorized card dispensing module with card collection capability for self-service kiosks and unattended terminals.

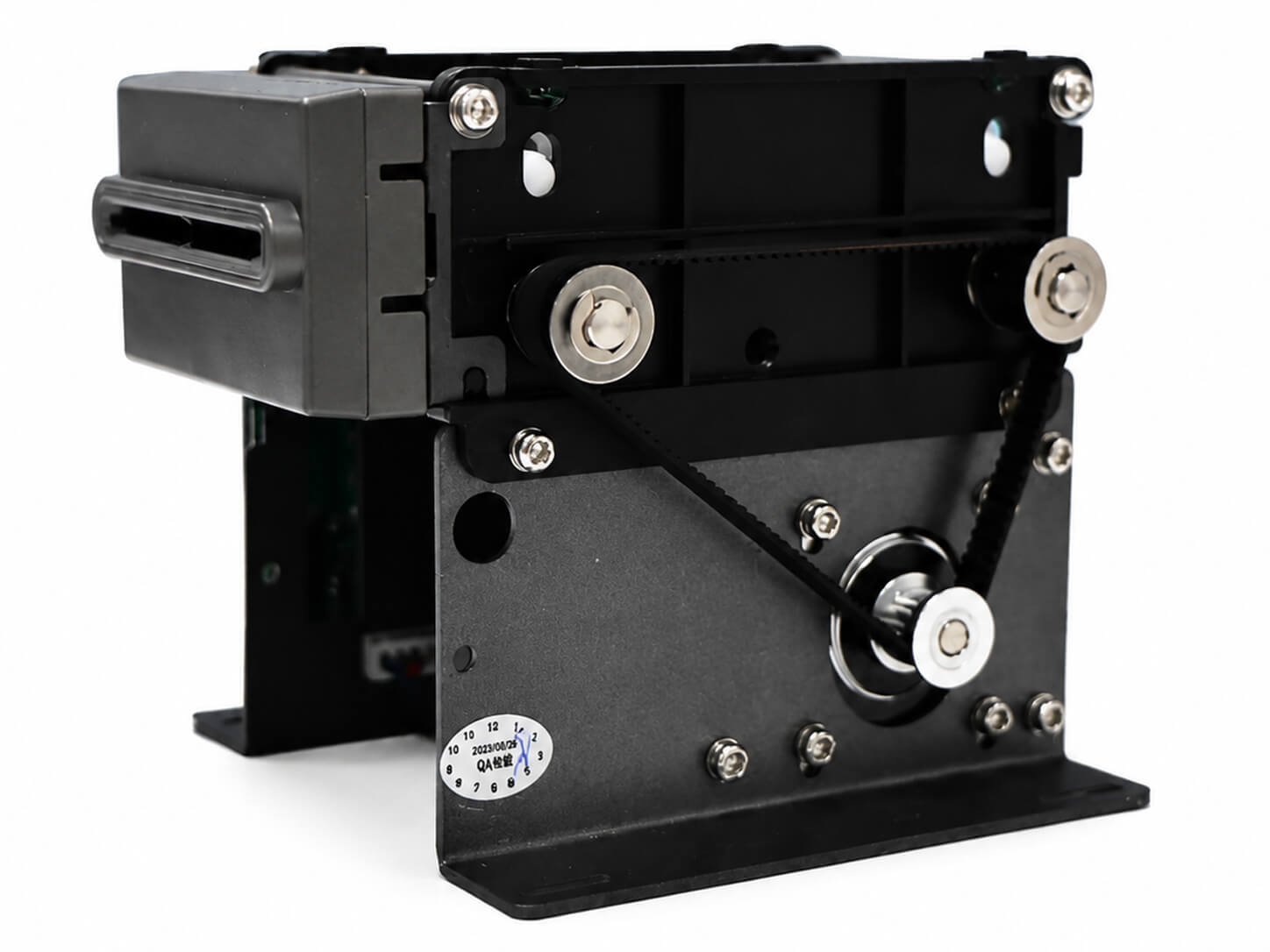

SNR-CD3000-D Motorized Card Collector
