SNR-K750C Motorized RFID Card Dispenser

Motorized card dispenser designed for automatic card issuing and controlled card collection in self-service kiosks and unattended terminals, with optional RFID reading and writing integration for compatible card applications.

3D drawings and SDK/API integration resources available.

CARD HANDLING

Reliable Card Issuing & Collection in One Module

SNR-K750C combines motorized card dispensing and controlled card collection in a compact module for unattended self-service systems. An optional RFID reader/writer can be integrated when the application needs to identify, read or encode compatible contactless cards before dispensing.

Motorized Card Dispensing

The SNR-K750C uses a hook-type card dispensing mechanism to move individual cards from the hopper into the card transport path for automatic issuing. This mechanical dispensing structure is designed for unattended card-issuing applications.

Optional RFID Read / Write

The SNR-K750C can be configured with a 13.56MHz RFID reader/writer for supported ISO 14443A cards, with ISO 15693 support available as an option according to project requirements.

Controlled Card Collection

Returned, rejected or retained cards can be routed into a separate collection box instead of being presented to the user. The collection box holds approximately 15 cards and supports controlled handling of returned or failed cards..

Automatic Status Recovery

Automatic status recovery helps the module return to an operable state after certain abnormal card-handling conditions, reducing the need for manual intervention during unattended operation.

KIOSK INTEGRATION

Flexible RFID Reader Integration for Kiosk Systems

The SNR-K750C can be used as a card-handling module alone or configured with an RFID reader/writer according to the project architecture. For applications that already use a specific reader or encoder, the mechanical installation position, card stop position, reading distance and software workflow should be evaluated before integration.

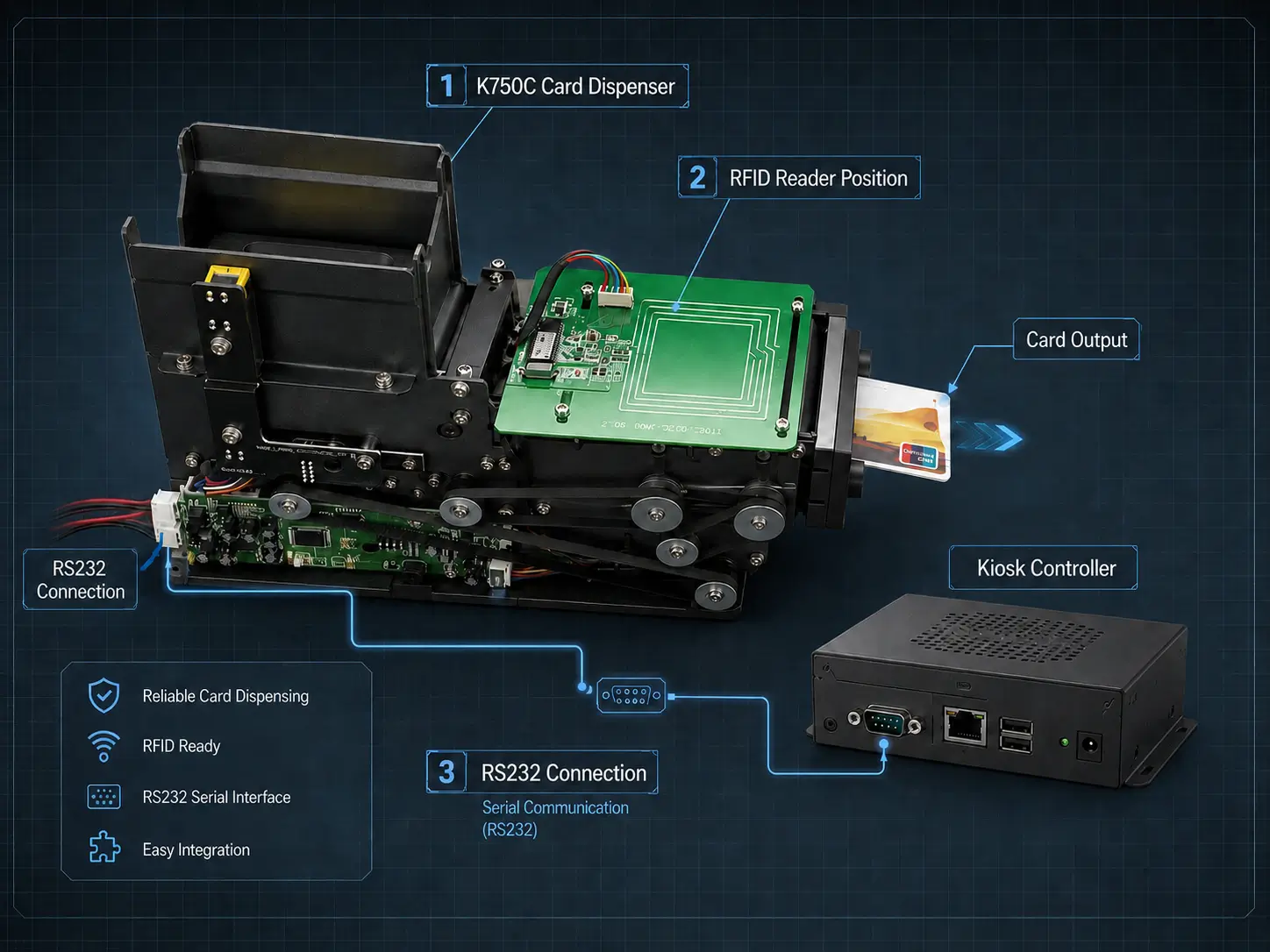

SNR-K750C RFID card dispenser RS232 kiosk integration diagram

01 — RS232 Communication

Connect the SNR-K750C to industrial PCs, embedded controllers and kiosk host systems through an RS232 serial interface.

02 — Protocol Command Control

The host application can control card dispensing, collection and device-status operations through the communication protocol.

03 — Integration Support

Communication protocol documentation, SDK/API resources, test tools and mechanical drawings are available to support software development, functional testing and kiosk enclosure design.

Need to Integrate a Specific Reader or Encoder?

Send us the reader or encoder model, mechanical dimensions, card technology and required workflow. We can help evaluate the card position, installation space, reading distance and integration requirements.

For a deeper explanation of how the dispenser, reader and host application work together, see our Card Reader and Card Dispenser Integration Guide.

APPLICATIONS

Built for Automated Card Issuing & Collection Applications

Designed for self-service systems that require automatic card dispensing, RFID processing and controlled card collection. It can also be integrated into parking kiosk systems that require automated card issuing and controlled card collection.

parking system

Parking Systems

Parking Systems Issue RFID cards or other physical credentials at parking entry terminals and route returned, rejected or retained cards into a separate collection box when required by the system workflow.

visitor management kiosk with RFID card issuing

Visitor Management

Automatically issue temporary visitor or access cards during self-service registration and collect returned cards separately when visitors check out or leave the facility.

access control kiosk with RFID card dispenser

Access Control

Issue RFID or identification credentials for offices, buildings, campuses and other controlled-access environments where automated card issuing and separate collection are required.

hotel self check-in kiosk with RFID room card issuing

Hotel Self Check-in

Issue hotel key cards through unattended check-in kiosks when the required hotel-lock encoder or compatible card-writing solution is integrated into the system. Returned or failed cards can be routed into the collection box instead of being automatically reused.

MODEL SELECTION

K750C or K750L: Which Card Handling Workflow Do You Need?

The SNR-K750C is designed for applications where cards need to be issued automatically and returned, rejected or retained cards can be stored in a separate collection box.

The SNR-K750L adds a reusable-card recycling path. Accepted returned cards can be sent back to the reusable card supply for subsequent issuing, while invalid, failed or rejected cards can still be routed into a separate reject-card collection box.

SNR-K750C:
Dispense → Read / Encode if required → Issue → Collect returned or failed cards separately

SNR-K750L:
Dispense → Read / Encode if required → Issue → Return →
Reusable card: Recycle → Reuse
Invalid / failed card: Reject → Separate collection box

Choose K750C when separate card collection is sufficient. Choose K750L when the system needs both reusable-card recycling and a separate path for rejected or invalid cards.

TECHNICAL SPECIFICATIONS

SNR-K750C Technical Specifications

Key card-handling, RFID, communication and operating specifications for evaluating the SNR-K750C in self-service kiosk integration projects.

CARD HANDLING

Card Type

Standard CR80-size Plastic / RFID Cards

Card Size

54 ± 0.5 × 85 ± 0.5 mm

Card Thickness

0.5–1.2 mm

Hopper Capacity

50 / 100 / 150 / 200 cards

Card Operations

Dispensing / Issuing / Collection

Collection Box Capacity

Approx. 15 cards

RFID & CONTROL

Communication Interface

RS232 Serial Interface

Control Method

Protocol Command Control

Optional RFID Read / Write

ISO 14443A

Optional RFID Support

ISO 15693

Status Detection

Card status and operating condition detection

Recovery Function

Automatic status recovery

POWER & ENVIRONMENT

Power Supply

DC 24V / 3A

Working Current

Idle: <100 mA Peak: <2000 mA

Operating Temperature

0°C to 45°C

Operating Humidity

30%–90% RH

Drive Parts Lifetime

500,000 Cycles

Weight

Approx. 2.0 kg

ENGINEERING SUPPORT

Complete Resources for Faster Kiosk Integration

From mechanical design to software development, we provide the technical resources your engineering team needs to integrate the SNR-K750C into self-service kiosk systems.

SDK / API

SDK/API resources help developers integrate card-handling functions into kiosk applications and host systems.

For application development

Communication Protocol

Command and communication references support RS232 control, card operations and device status handling.

For device control

Test Tools

Test utilities help engineers verify communication, card operations and module functions during development.

For testing & debugging

3D Drawings

Mechanical drawings support installation-space evaluation, mounting design and kiosk enclosure development.

For mechanical integration

FAQ

Frequently Asked Questions About SNR-K750C

What types of cards can the SNR-K750C dispense?

The SNR-K750C is designed for standard CR80-size cards with a supported thickness of approximately 0.5–1.2 mm. It can be used with standard plastic and RFID cards that meet the mechanical requirements. Actual cards should be tested before volume production if they have unusual materials, surface coatings, embossing or deformation.

Yes. The SNR-K750C can be configured with an optional 13.56MHz RFID reader/writer for supported contactless cards. ISO 14443A is supported with the applicable reader configuration, and ISO 15693 can be provided as an option according to project requirements.

The SNR-K750C is available with 50, 100, 150 or 200-card hopper configurations. The appropriate capacity can be selected according to kiosk size, expected transaction volume and required service interval.

Yes. Returned, rejected or retained cards can be routed into a separate collection box instead of being presented to the user. The collection box capacity is approximately 15 cards.

The SNR-K750C dispenses cards and routes returned, rejected or retained cards into a separate collection box.
The SNR-K750L adds a reusable-card recycling workflow: accepted returned cards can go back into the reusable card supply for subsequent issuing, while invalid or failed cards can be routed into a separate reject-card collection box.

Choose K750C when separate collection is sufficient, and K750L when the application needs both automatic card reuse and separate reject-card handling.

Yes, depending on the reader or encoder dimensions, card position, antenna position or reading distance and the required software workflow. Mechanical and functional compatibility should be evaluated before the kiosk enclosure is finalized.

We provide communication protocol documentation, SDK/API resources, test tools and 3D mechanical drawings to support RS232 control, application development, communication testing and kiosk enclosure design.
