KIOSK PRINTER

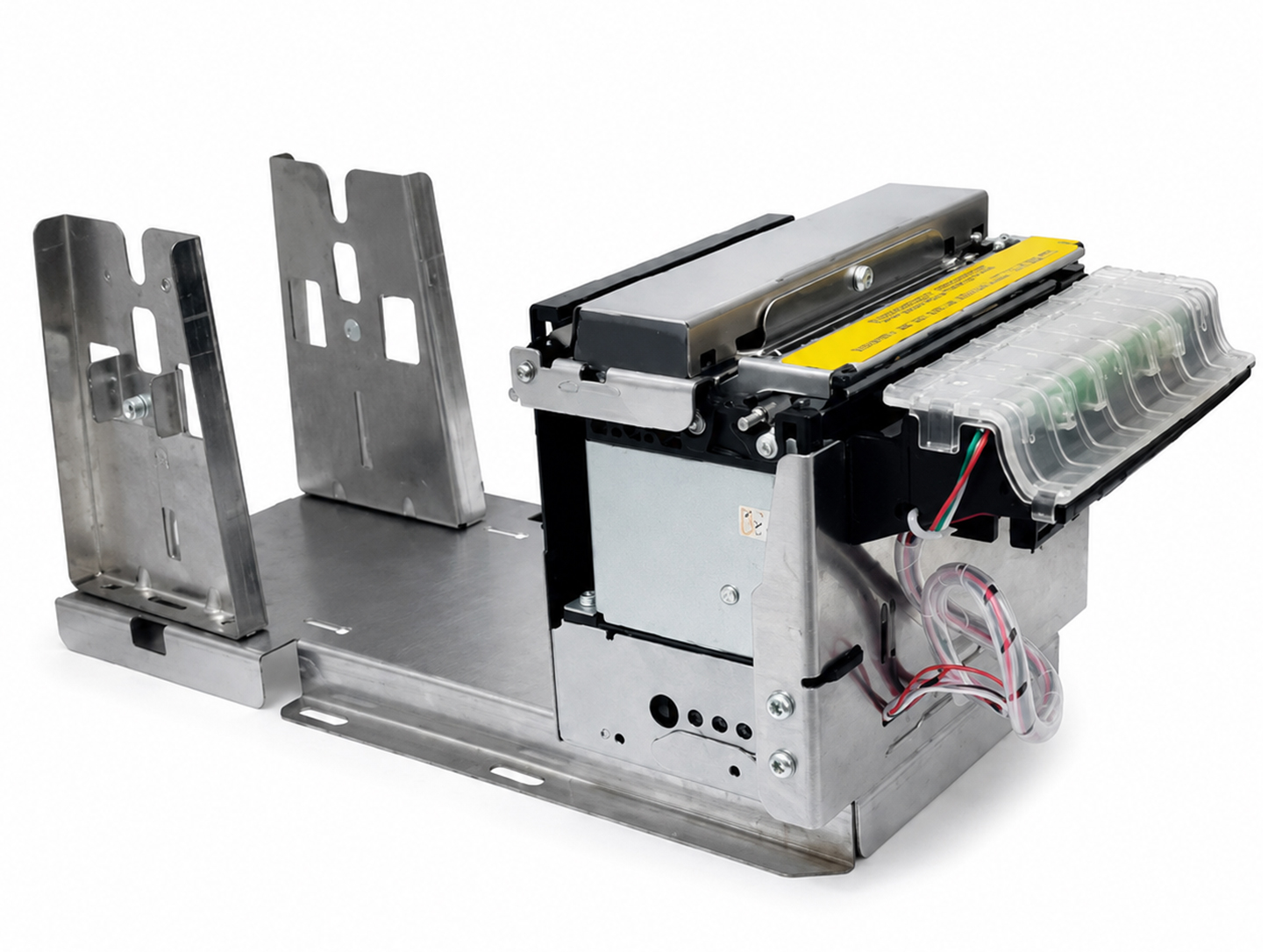

SNR-KP805 80mm Kiosk Thermal Printer
SNR-KP805 is a reliable 80mm kiosk printer module with anti-jamming and anti-pulling protection, drop-in paper loading and large-roll support for unattended self-service systems.
- Print Speed - Up to 150mm/s
- Paper Roll — Up to Ø150mm
- Protection — Anti-Jam & Anti-Pull
- Interfaces - RS232C / USB 2.0
SDK/API · Protocol · Test Tool · 3D Drawings Available

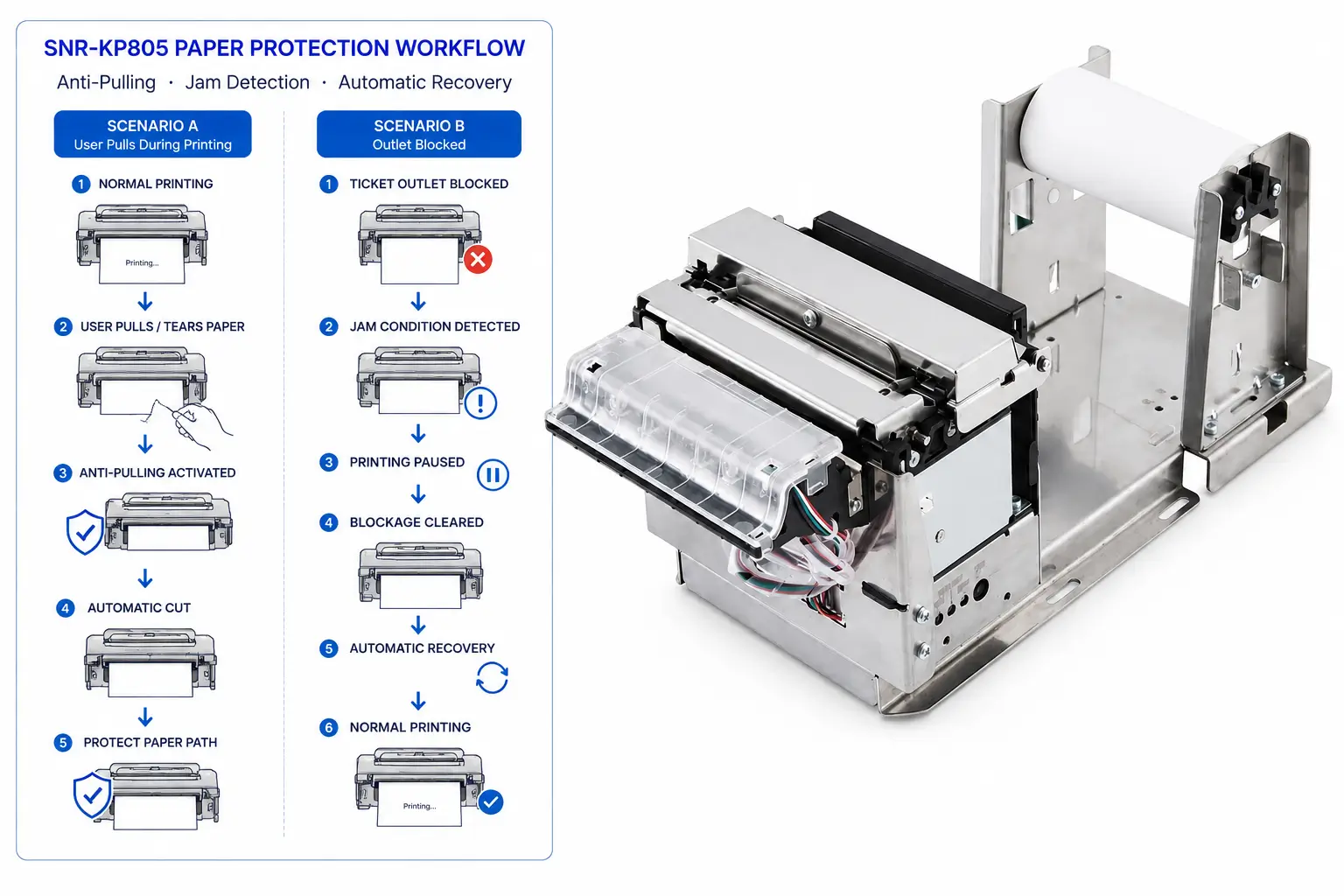

PAPER HANDLING PROTECTION
Anti-Jamming & Anti-Pulling Protection for Unattended Kiosks
The SNR-KP805 helps protect the paper path against improper pulling and ticket blocking, reducing paper-handling interruptions in unattended self-service environments.
PAPER HANDLING PROTECTION
01 Anti-Pulling Protection
If a user pulls or tears the paper during printing, the protection function is triggered and the printer automatically cuts the paper to help prevent paper displacement and related printing problems.
02 Jam Detection & Print Pause
If the ticket outlet is intentionally blocked, the printer detects the abnormal condition and pauses printing to protect the paper path.
03 Automatic Printing Recovery
Once the blocked condition is cleared, the printer automatically returns to normal printing operation without requiring the printer to be restarted.
CORE CAPABILITIES
Reliable Printing for Everyday Kiosk Operation
SNR-KP805 combines reliable thermal printing, automatic cutting, black mark detection and flexible paper support for integration into unattended self-service terminals.
150mm/s Thermal Printing
Prints receipts and tickets at speeds up to 150mm/s with 203 DPI thermal printing resolution.
Automatic Cutter
Integrated automatic cutter supports reliable receipt and ticket separation, with a rated cutter life of up to 1,000,000 cuts.
Black Mark Detection
Supports black mark detection for ticket positioning and applications that require predefined paper cutting positions.
Flexible Paper Support
Supports 79.5 ±0.5mm and 82 ±0.5mm thermal paper with thickness from 0.06 to 0.08mm.
TECHNICAL SPECIFICATIONS
SNR-KP805 80mm Kiosk Printer Module Specifications
Key printing, paper, communication and electrical specifications for kiosk integration and project evaluation.
Printing
Print Method
Thermal Dot Line
Resolution
203 DPI, 8 dots/mm
Print Speed
Up to 150mm/s
Printing Width
72mm max.
Print Head Life
Minimum 100km
Auto-Cutter Life
Up to 1,000,000 cuts
Paper
Paper Type
Thermal Paper Roll
Paper Width
79.5 ±0.5mm / 82.0 ±0.5mm
Paper Thickness
0.06–0.08mm
Roll Diameter
150mm max.
Dimensions
251.5 × 120 × 109.3mm
Weight
Approx. 1.5kg without paper roll
Interface & Electrical
Connectivity
RS232C / USB 2.0
Baud Rate
9600 / 19200 / 38400 / 115200
Power Supply
24V DC ±10%
Typical Current
2A
Operating Temperature
0°C to 50°C
Operating Humidity
10–80% RH
Note: Final interface connection, paper roll position, mounting structure and paper outlet alignment should be confirmed according to the kiosk cabinet design and project requirements.

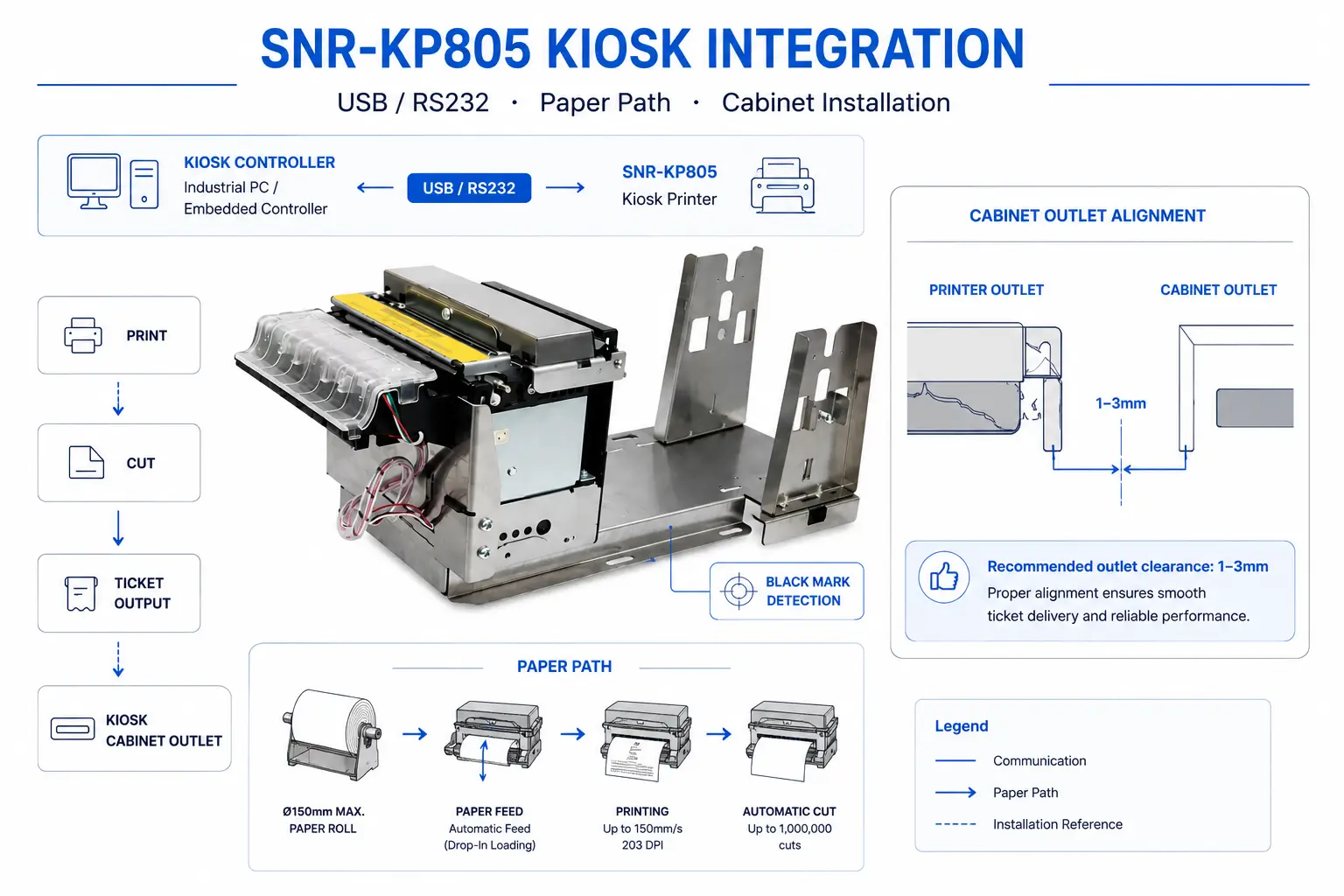

SYSTEM INTEGRATION
Straightforward Integration for Self-Service Kiosk Systems
Integrate the SNR-KP805 with a kiosk controller through USB or RS232, with direct receipt output, black mark detection and a compact paper path designed for embedded installation.
01 RS232C & USB Communication
Connect the SNR-KP805 to an industrial PC, embedded controller or kiosk system through USB or RS232 for printer control and system integration.
02 Paper Feed & Direct Output
Paper feeds from the integrated roll holder through the printing and cutting mechanism for direct receipt or ticket output through the kiosk cabinet.
03 Cabinet Outlet Alignment
Proper alignment between the printer outlet and kiosk cabinet opening helps ensure smooth ticket delivery and reliable paper handling.
Planning your kiosk installation?
Send us your cabinet layout, paper roll requirements and controller interface. We can help evaluate the printer mounting, paper path and communication configuration for your project.
STATUS MONITORING
Real-Time Status Detection for Unattended Operation
Built-in ticket and paper status detection helps the kiosk application monitor printing conditions and respond to common operating events in unattended environments.
Ticket Blocked
Detects abnormal ticket conditions at the output.
Ticket Taken
Detects when the printed ticket has been taken by the user.
Paper Low
Provides low-paper status for maintenance planning.
Paper Out
Detects when the paper supply is exhausted.
Black Mark
Supports black mark detection for applicable ticket and paper positioning requirements.
APPLICATIONS
Reliable Receipt Printing for Everyday Self-Service Kiosks
Designed for self-service systems that require reliable receipt or ticket printing, easy paper maintenance and straightforward embedded integration.

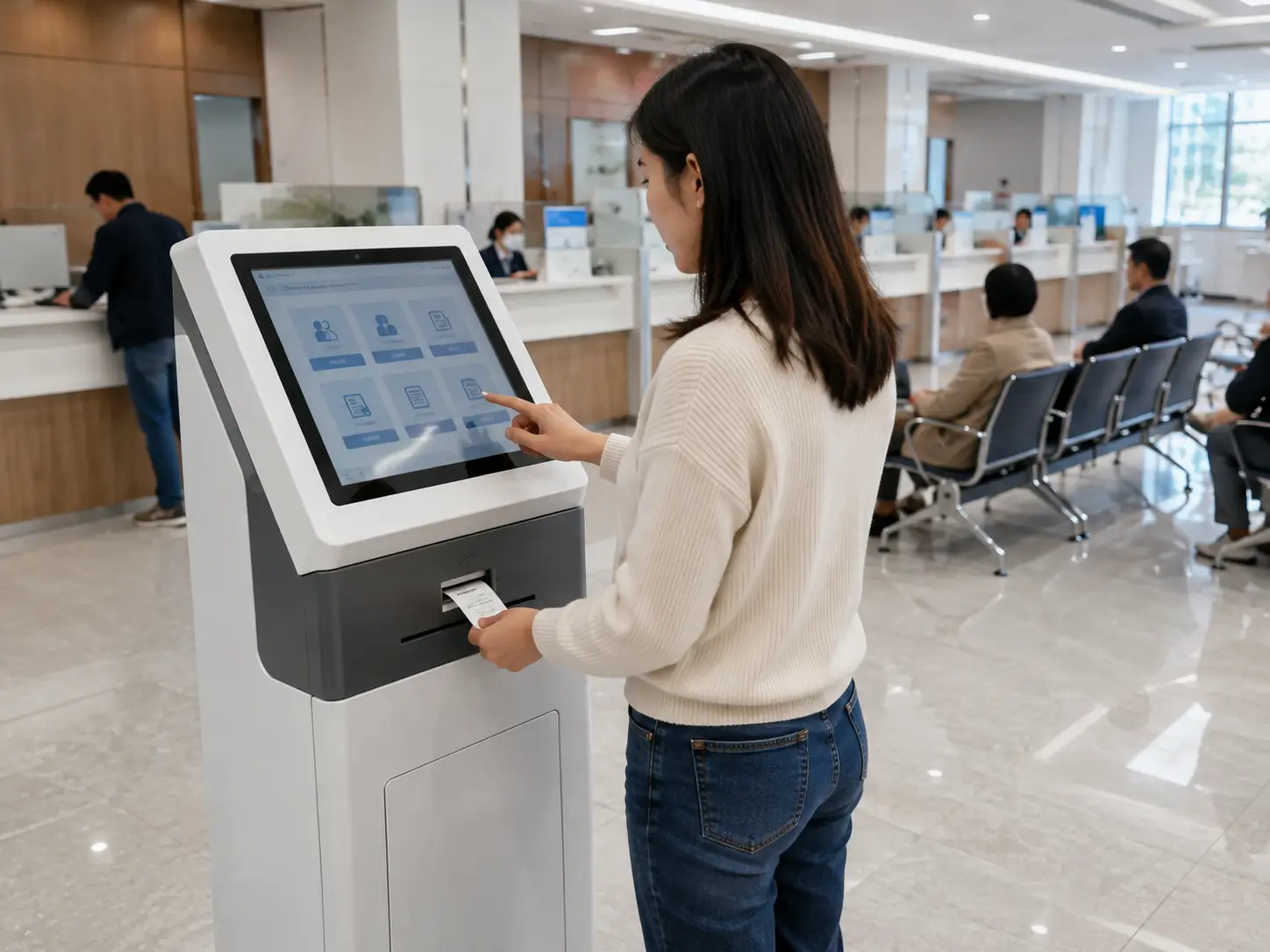

Queue Management Kiosks
Print queue tickets and service numbers for government offices, banks and public service centers.

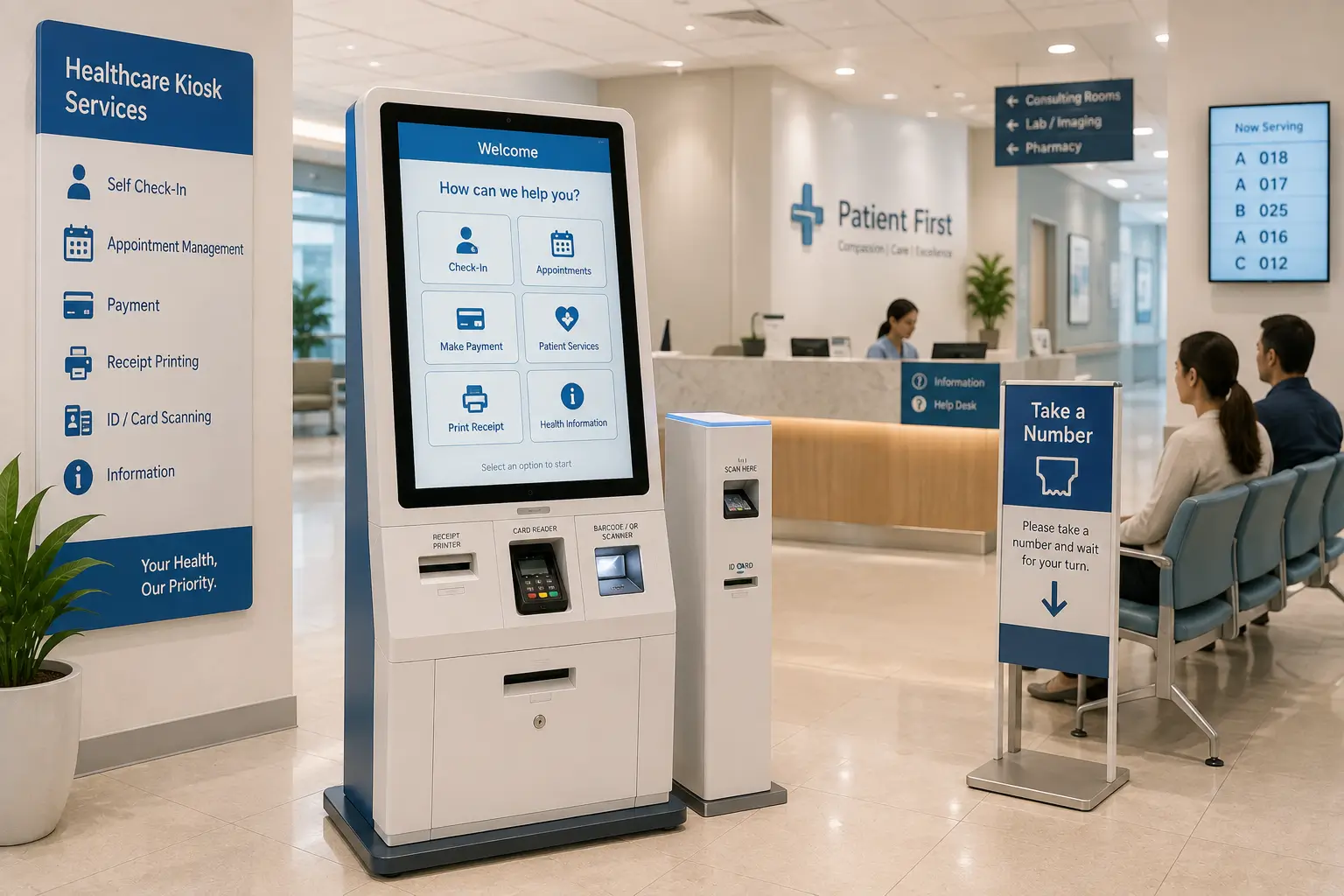

Hospital Registration Kiosks
Provide registration receipts, queue tickets and service documents through hospital self-service terminals.

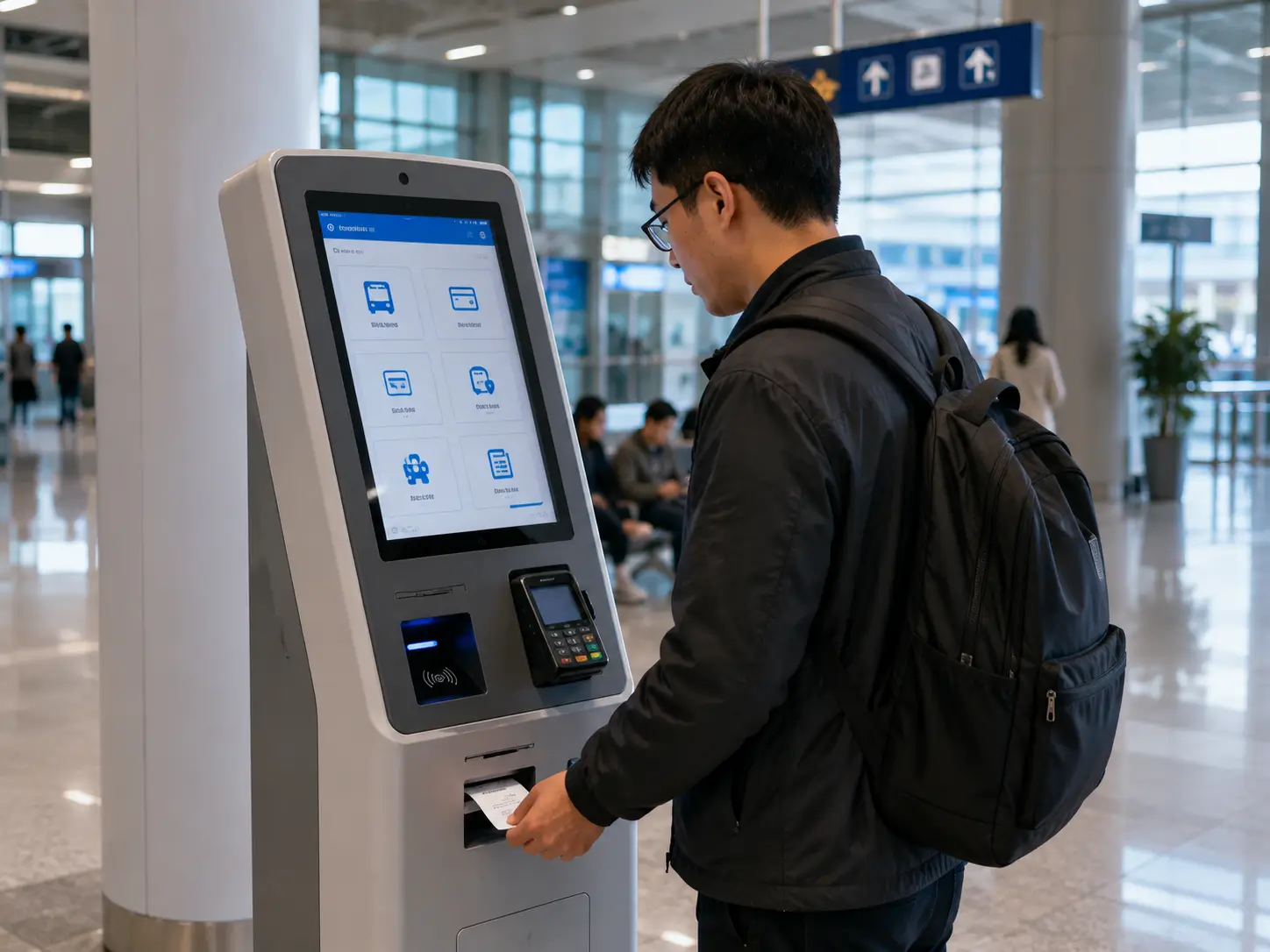

Vending & Payment Kiosks
Print transaction receipts and payment records for vending machines and unattended payment terminals.

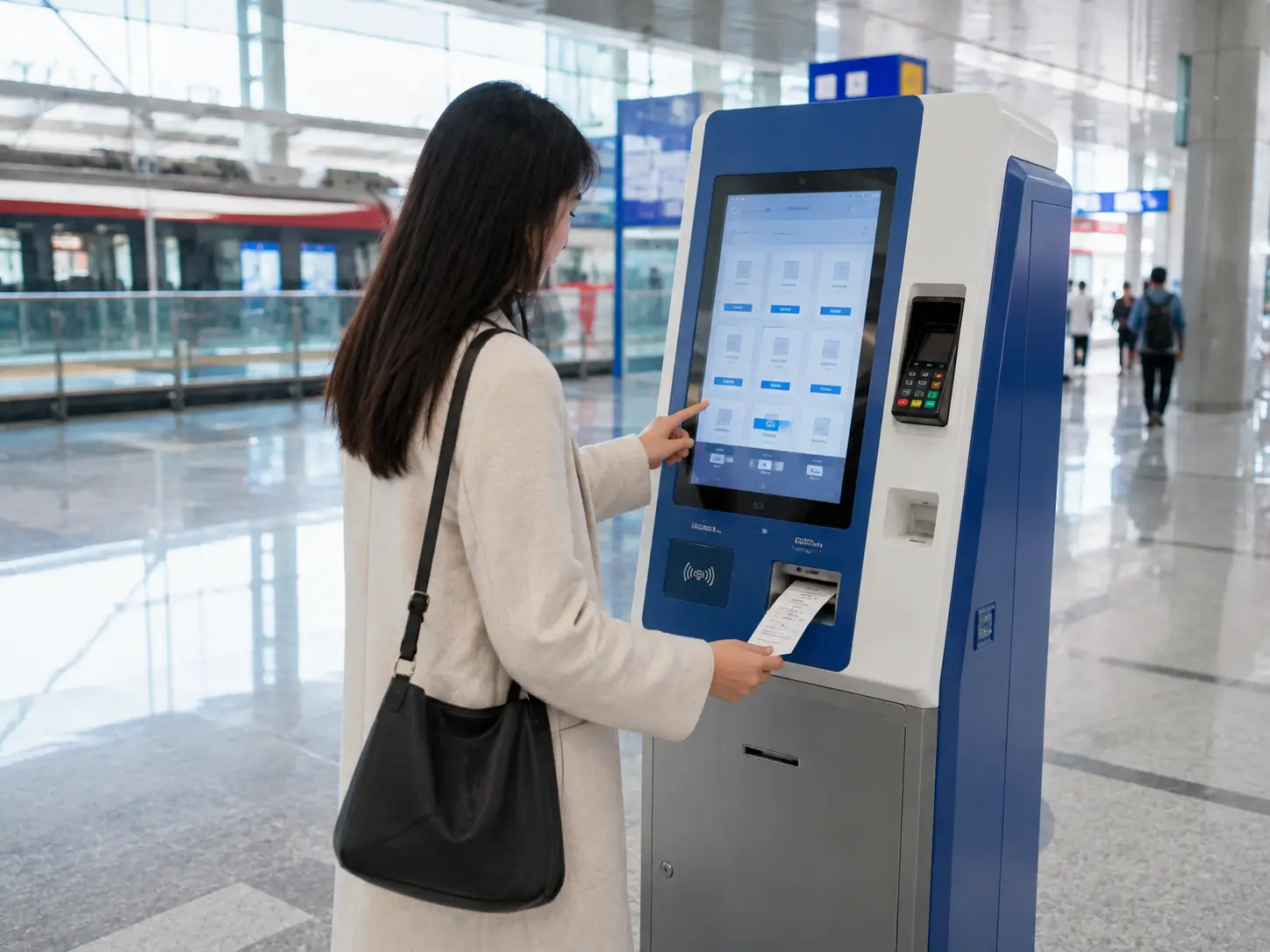

Parking & Ticketing Machines
Support receipt and ticket printing for parking payment, bus and rail ticketing self-service systems.
ENGINEERING SUPPORT
Complete Resources for Faster Printer Integration
From software development and communication testing to mechanical installation, we provide the engineering resources needed to integrate the SNR-KP805 into your kiosk system.
SDK / API
Development resources help engineers integrate printer functions and device control into kiosk applications and host systems.
For application development
Communication Protocol
Command and communication documentation supports printing control, cutter operation and printer status management through the host system.
For device control
Test Tools
Test utilities help engineers verify communication, printing, cutting and printer operation during development and system commissioning.
For testing & debugging
3D Drawings
Mechanical drawings support printer mounting, paper roll positioning, paper path planning and outlet alignment inside the kiosk cabinet.
For mechanical integration
INTEGRATION FAQ
Frequently Asked Questions About SNR-KP805
What paper sizes does the SNR-KP805 support?
The SNR-KP805 supports 79.5 ±0.5mm and 82 ±0.5mm thermal paper, with a supported paper thickness of 0.06–0.08mm.
What is the maximum paper roll diameter?
The SNR-KP805 supports thermal paper rolls up to Ø150mm, helping reduce paper replacement frequency in unattended kiosk applications.
How does paper loading work?
With the printer powered on, insert the leading edge of the paper into the printing mechanism and the printer automatically feeds the paper into position. The leading edge should be flat and properly prepared before loading.
How does the anti-pulling protection work?
If a user pulls or tears the paper during printing, the anti-pulling function is triggered and the printer automatically cuts the paper to help prevent paper displacement and related printing problems.
How does the printer handle a blocked ticket outlet?
If the ticket outlet is intentionally blocked, the printer detects the abnormal condition and pauses printing. Once the blockage is cleared, the printer automatically returns to normal printing operation.
Does the SNR-KP805 support black mark paper?
Yes. The SNR-KP805 supports black mark detection for applications that require predefined ticket positioning or cutting positions.
What interfaces are available for kiosk integration?
The SNR-KP805 configuration offered on this page supports USB and RS232 communication for connection with industrial PCs, embedded controllers and kiosk systems.
RELATED PRODUCTS
Explore Other Kiosk Printer Options
Compare other SNROKIOSK printer models for different paper handling, media and self-service kiosk requirements.
SNR-KP802-VX 80mm Presenter Kiosk Printer
Presenter-type 80mm kiosk printer designed for controlled receipt output and unattended self-service applications.
SNR-KP800-VX 80mm Kiosk Thermal Printer
High-speed 80mm kiosk printer with anti-drag ticket protection and flexible paper roll mounting for unattended self-service systems.

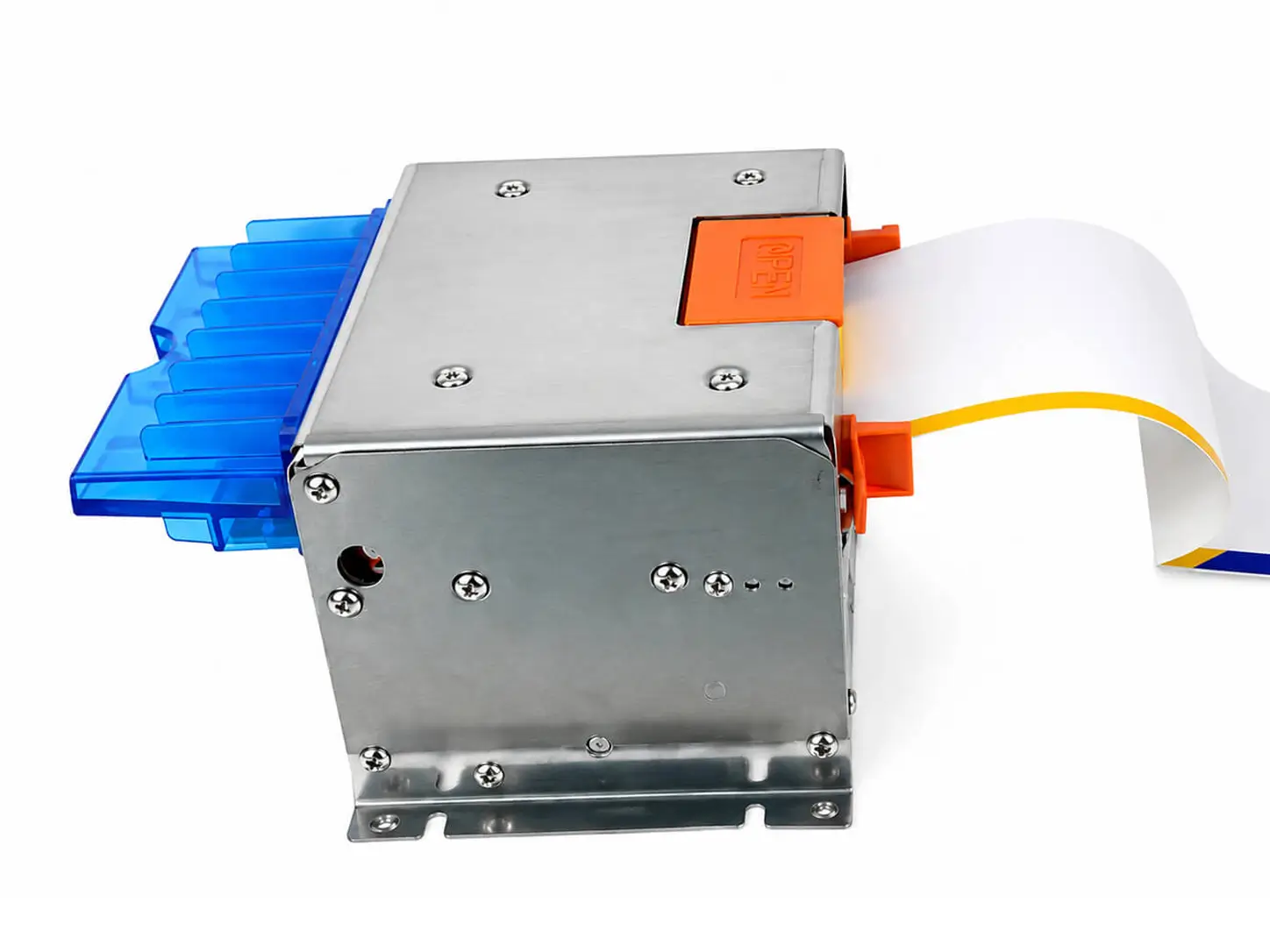

SNR-KP83H Fan-fold Thermal Ticket Printer
