KIOSK PRINTER

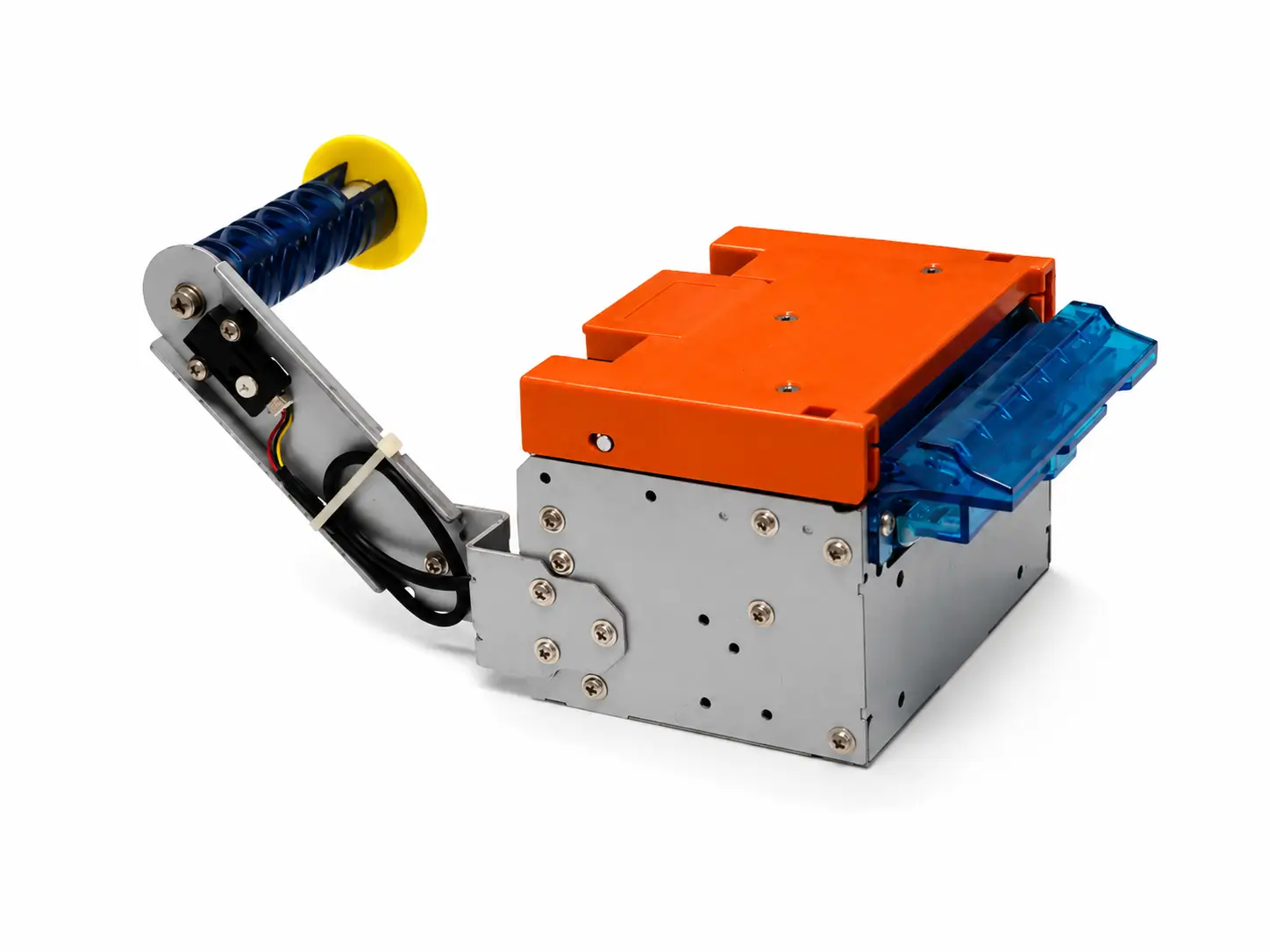

SNR-KP800-VX 80mm Kiosk Thermal Printer

High-speed 80mm kiosk thermal printer with anti-drag ticket protection, smart bezel and flexible paper roll mounting for reliable printing in unattended self-service systems.

Print Speed - Up to 250mm/s
Paper Width - 58 / 60 80 / 82.5mm
Paper Thickness - 0.06 - 0.2 mm
Paper Diameter- 160mm Max.
Interfaces - RS232C / USB 2.0
Auto Cutter - Full Cut / Partial cut
Paper Handling - Anti-Drag / Anti-Pull / Anti-Jam

SDK/API · Protocol · Test Tool · 3D Drawings Available

PAPER HANDLING

Anti-Drag Ticket Protection for Public Kiosks

In unattended environments, users may pull a receipt or ticket before printing is complete. The SNR-KP800-VX uses an anti-drag ticket system to help prevent user-pull related paper jams and improve printing reliability.

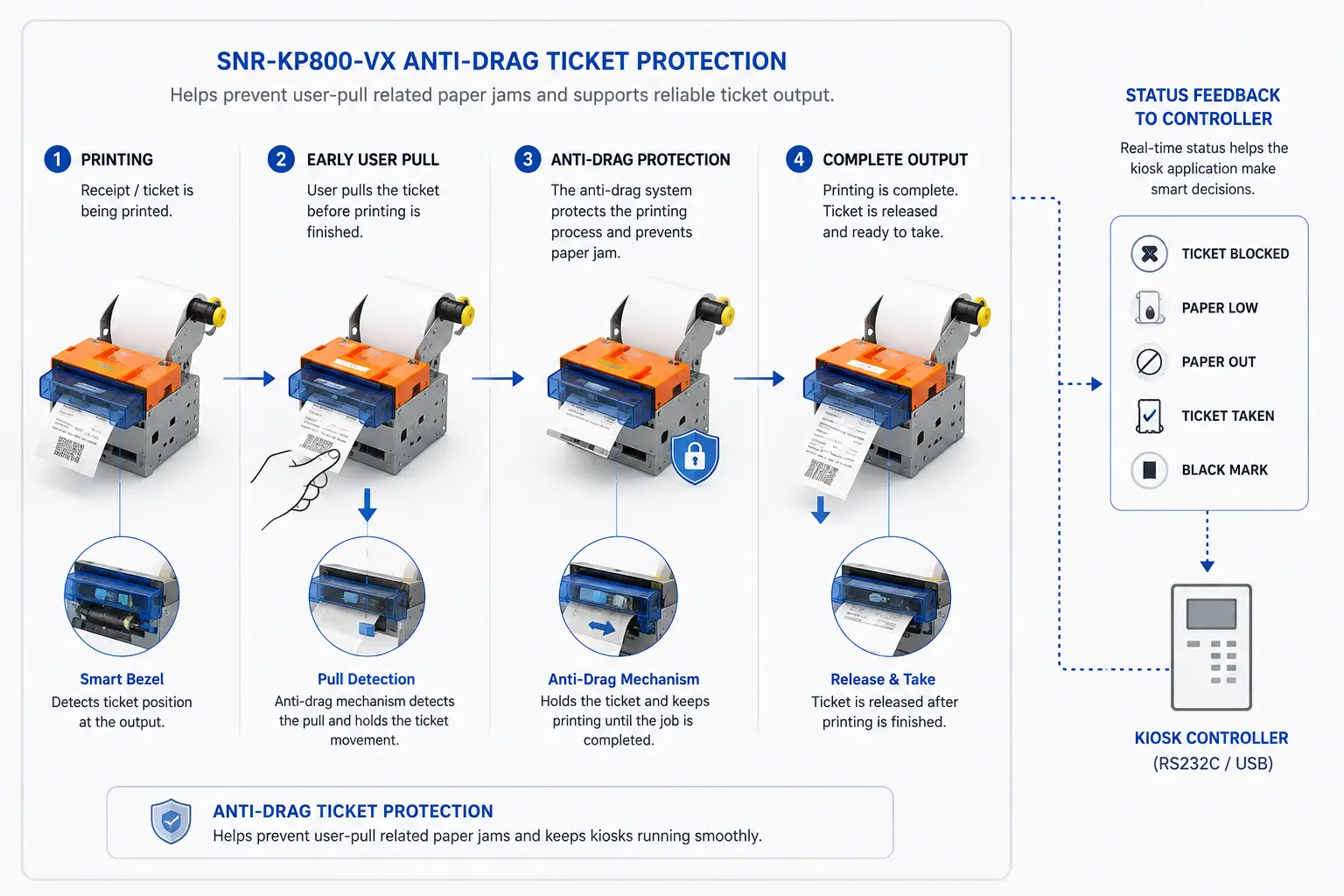

SNR-KP800-VX anti-drag ticket protection diagram

ANTI-DRAG DESIGN

01 User-Pull Protection

The anti-drag system helps prevent paper jams when users attempt to pull the ticket before printing is finished.

02 Ticket Status Detection

Ticket-blocked and ticket-taken detection provide status feedback for the kiosk application to monitor ticket output conditions.

03 Reliable Unattended Operation

Anti-drag protection and ticket status detection help reduce common paper-handling problems in high-use unattended self-service environments.

CORE CAPABILITIES

Built for Reliable Kiosk Printing

SNR-KP800-VX combines high-speed thermal printing, protected ticket handling, status detection and flexible paper roll installation for reliable integration into unattended kiosk systems.

Anti-Drag Ticket Protection

Helps prevent paper jams caused by users pulling unfinished tickets during the printing process.

Smart Ticket Detection

Monitors ticket-blocked and ticket-taken conditions to support reliable output handling and kiosk status management.

Flexible Paper Roll Mounting

Supports horizontal, vertical and angled paper roll configurations for different kiosk cabinet layouts.

High-Speed Thermal Printing

Prints receipts and tickets at speeds up to 250mm/s with 203 DPI thermal printing resolution.

TECHNICAL SPECIFICATIONS

SNR-KP800-VX 80mm Kiosk Thermal Printer Specifications

Key printing, paper-handling, communication and electrical specifications for kiosk integration and project evaluation.

Printing

Print Method: Thermal Dot Line
Resolution: 203 DPI, 8 dots/mm
Print Speed: Up to 250mm/s
Printing Width: 80mm max.
Print Head Life: Minimum 100km
Printer Life: 15,000,000 print lines
Auto-Cutter Life: 1,000,000 cuts(60μm paper); 750,000 cuts(200μm paper)

Paper

Interface & Electrical

Connectivity: RS232C / USB 2.0
Baud Rate: 9600 / 19200 / 38400 / 115200
Power Supply: 24V DC ±10%
Typical Current: 1.5A continuous / 3.2A peak
Operating Temperature: -10°C to 60°C
Storage Temperature: -20°C to 70°C
Weight: Approx. 1.45kg without paper roll

Integration Note: Final interface, mounting bracket, paper roll position, cable definition and sensor settings should be confirmed according to the kiosk cabinet structure and project requirements.

SYSTEM INTEGRATION

Flexible Integration for Compact Kiosk Designs

Integrate the SNR-KP800-VX with kiosk controllers through RS232C or USB 2.0, with ticket status feedback and flexible paper roll mounting for different cabinet layouts.

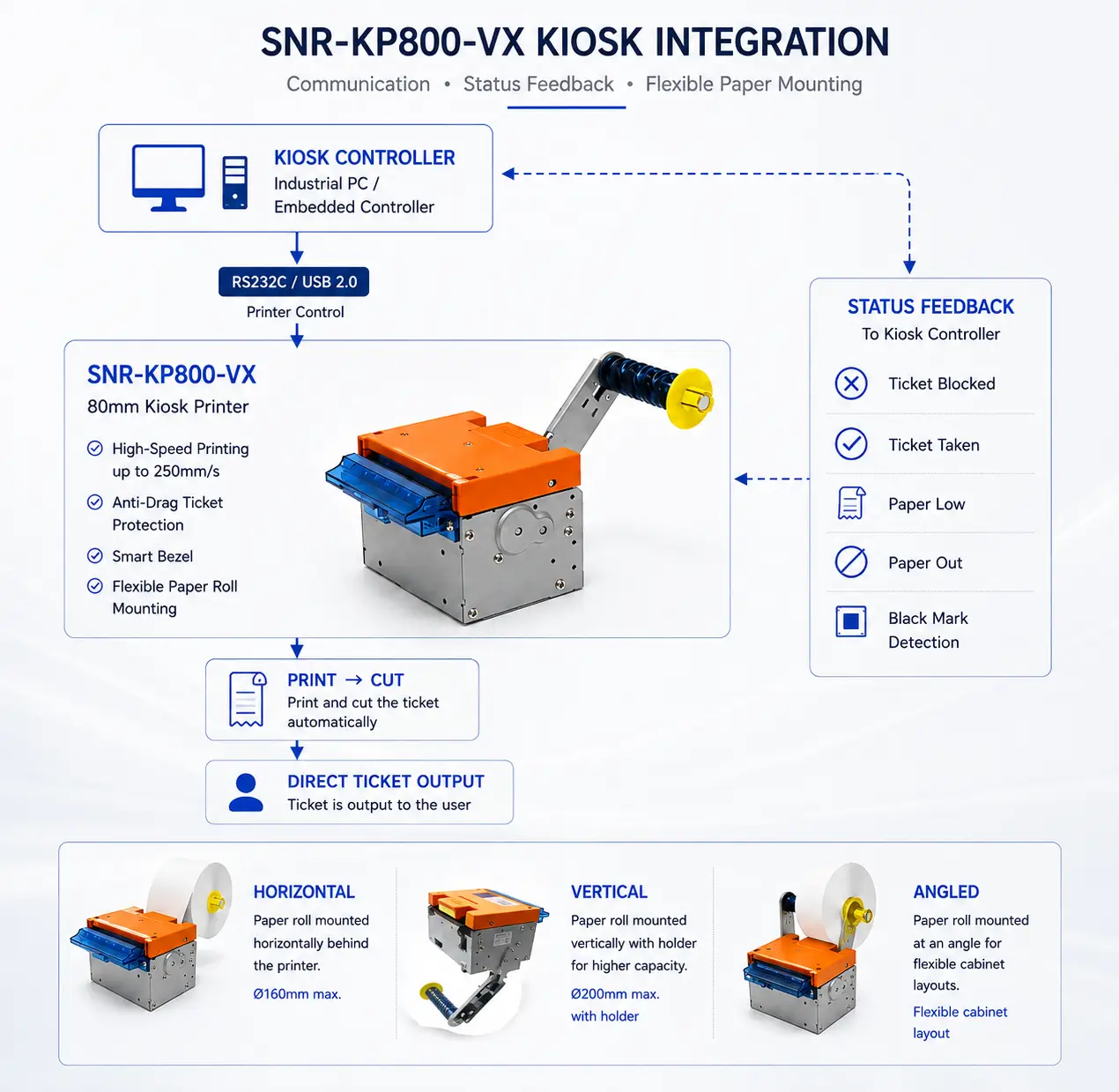

SNR-KP800-VX RS232 USB kiosk printer integration diagram

STATUS MONITORING

Real-Time Status Detection for Unattended Operation

Built-in ticket and paper status detection helps the kiosk application monitor printing conditions and respond to common operating events in unattended environments.

Ticket Blocked

Detects abnormal ticket conditions at the output.

Ticket Taken

Detects when the printed ticket has been taken by the user.

Paper Low

Provides low-paper status for maintenance planning.

Paper Out

Detects when the paper supply is exhausted.

Black Mark

Supports black mark detection for applicable ticket and paper positioning requirements.

APPLICATIONS

Reliable Printing for High-Use Self-Service Kiosks

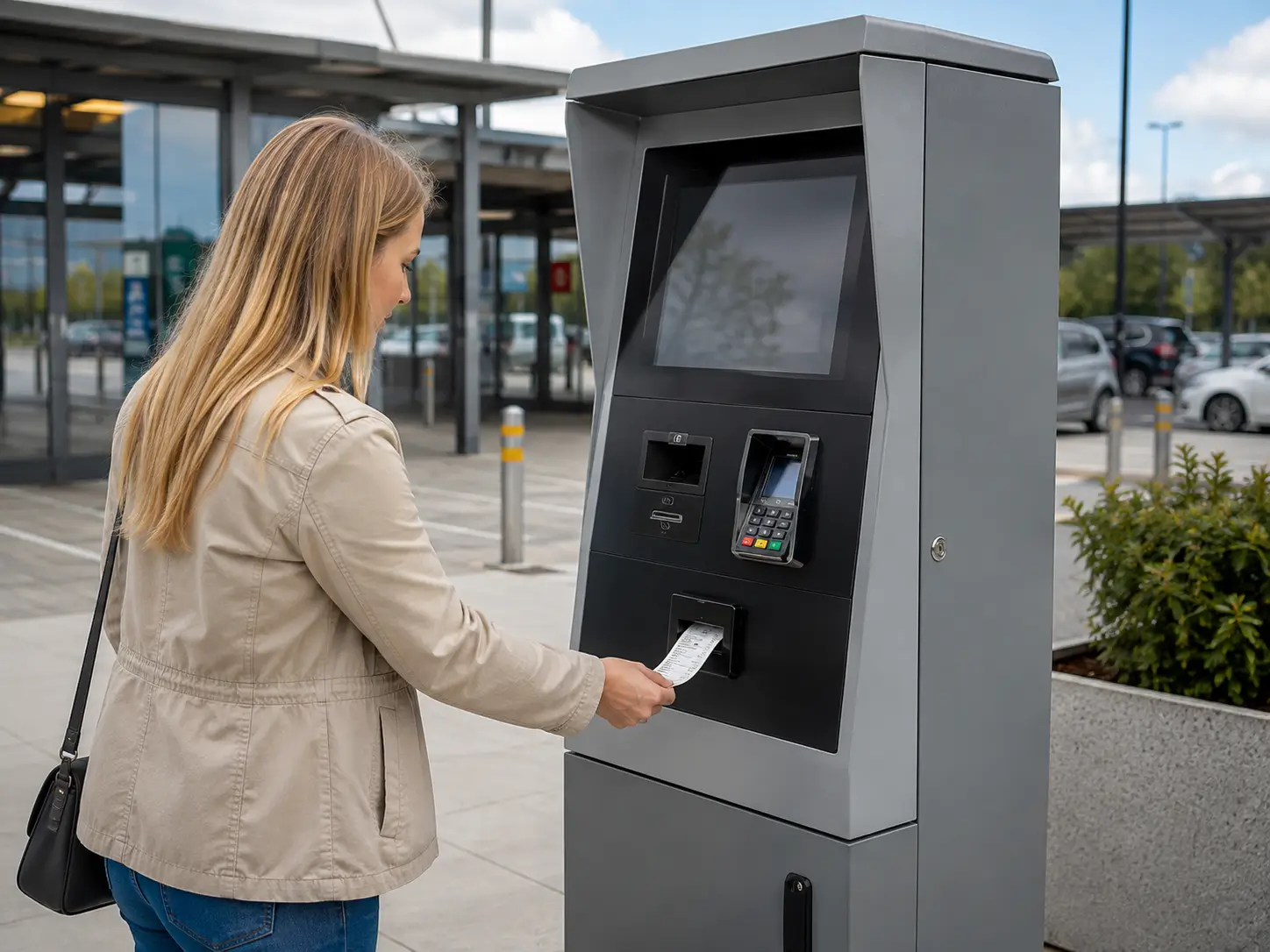

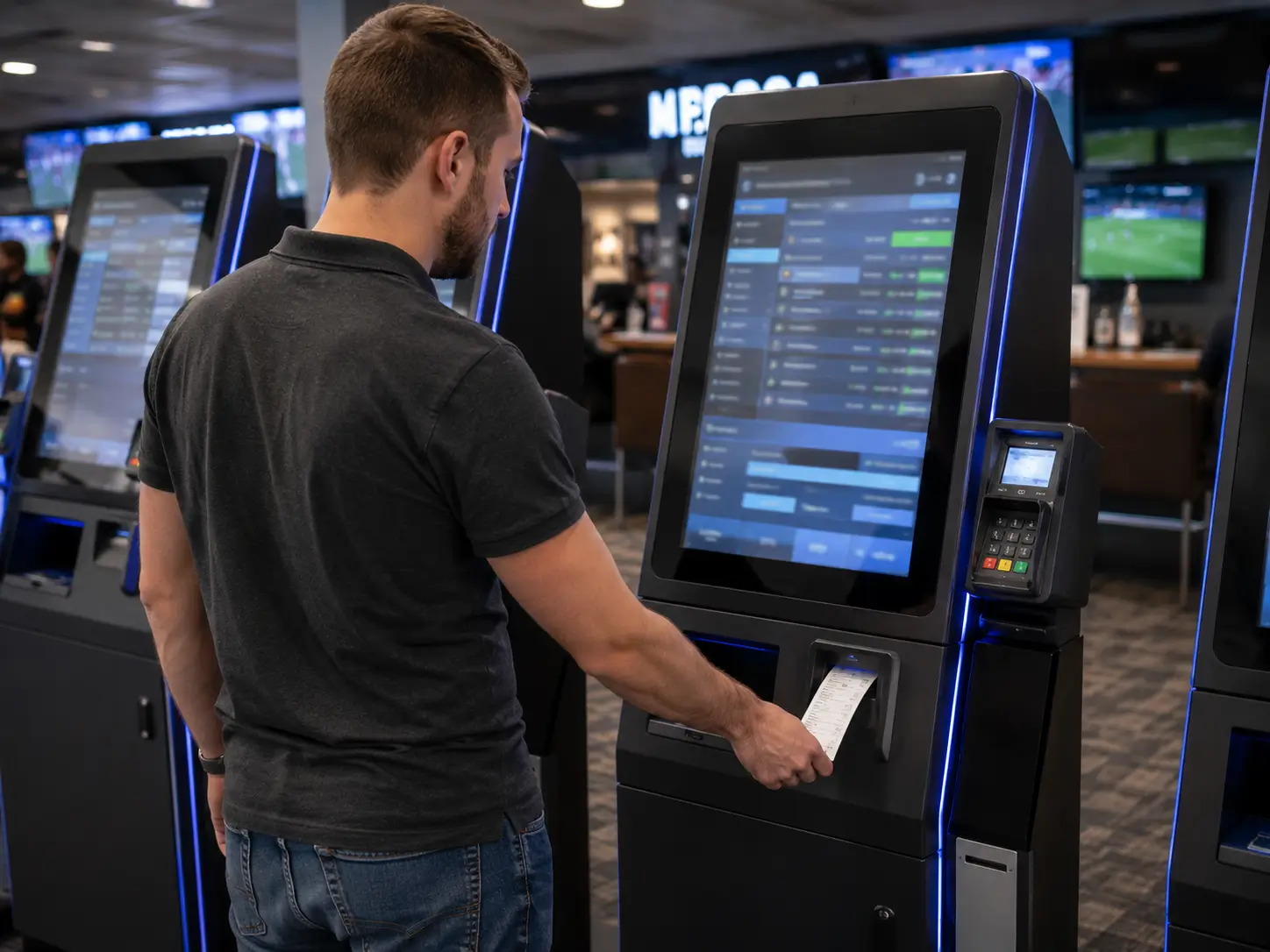

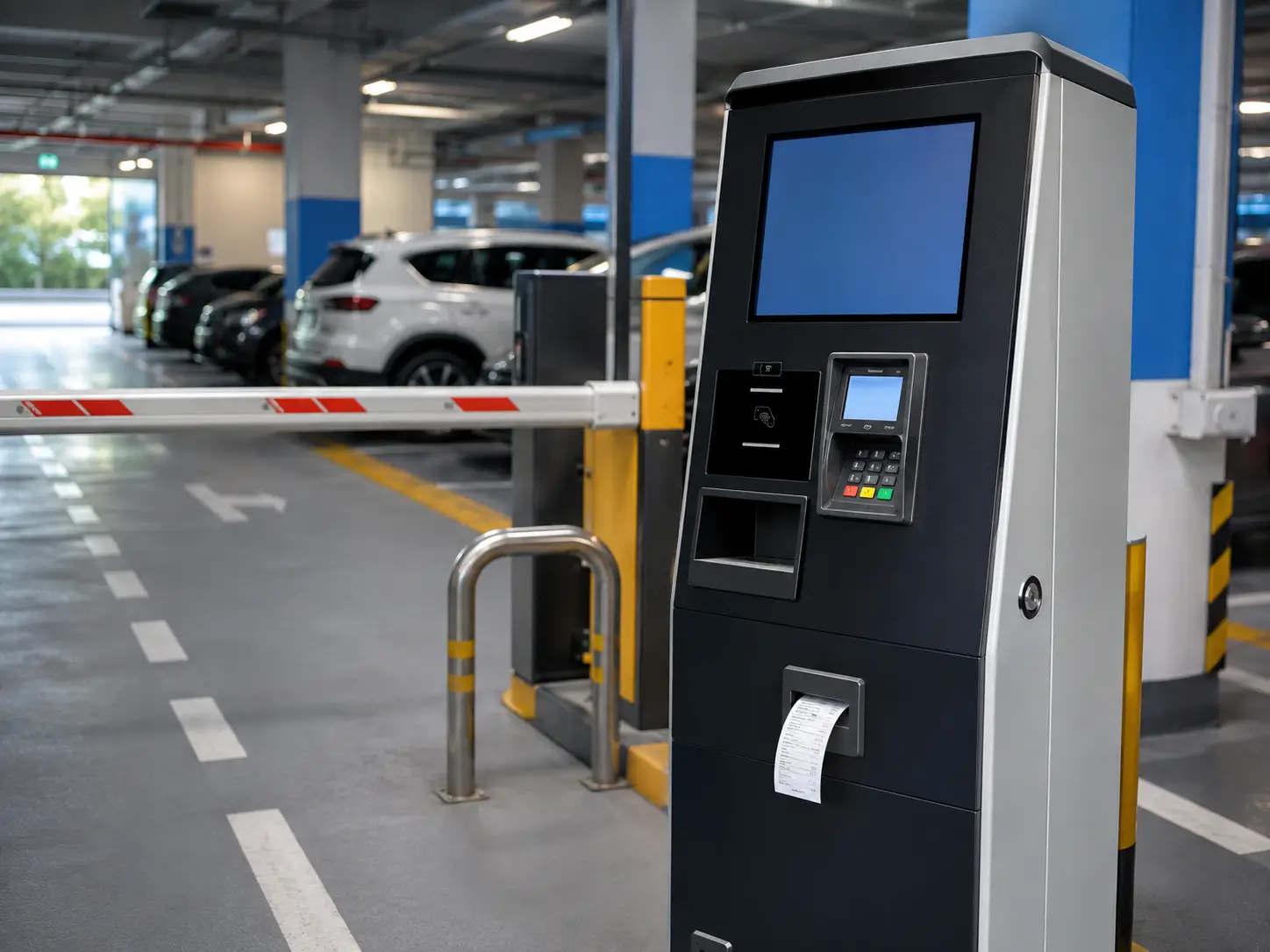

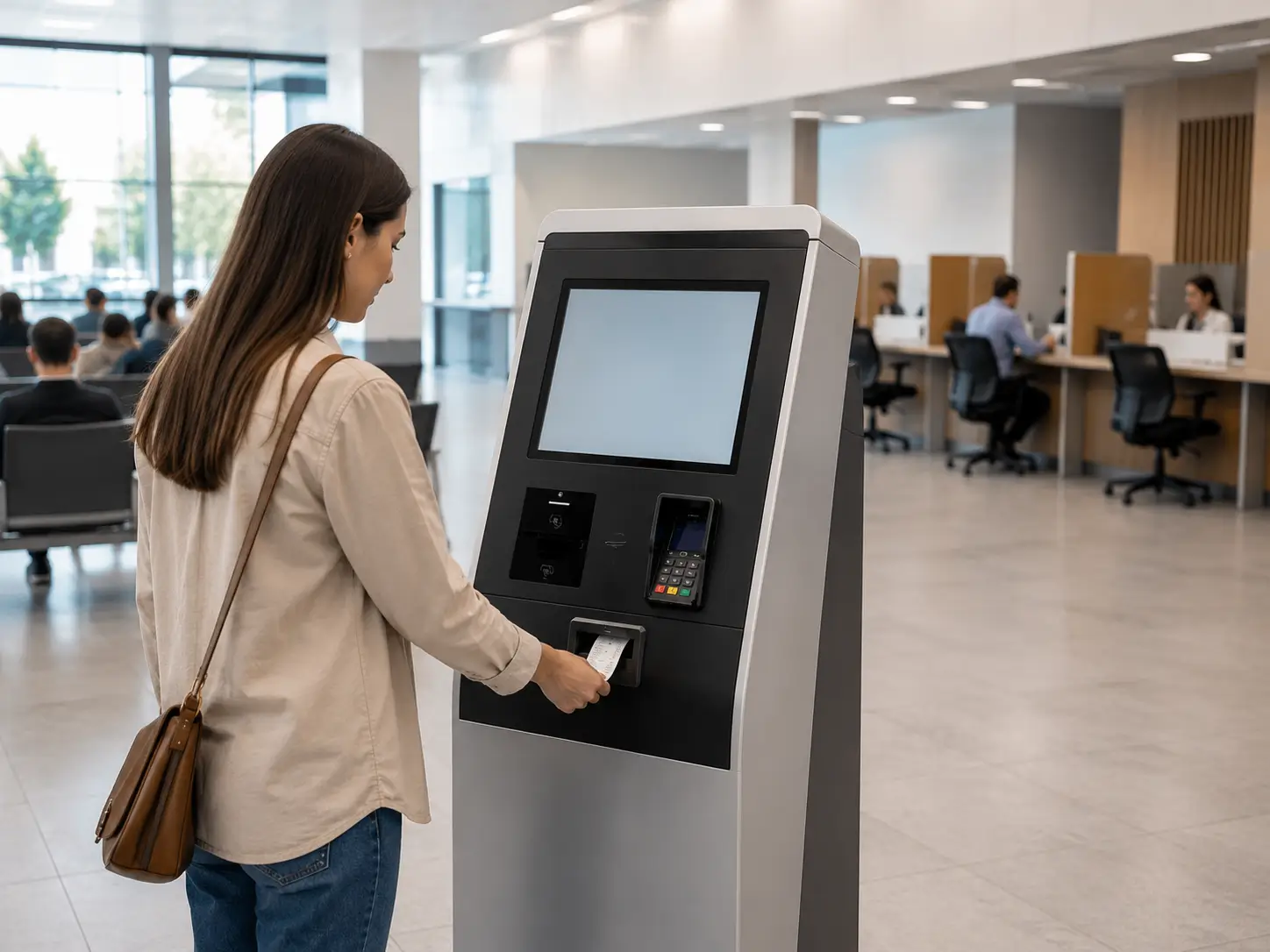

Designed for unattended applications where users interact directly with printed tickets and receipts, including parking, gaming, payment and queue management systems.

ENGINEERING SUPPORT

Complete Resources for Faster Printer Integration

From software development and communication testing to mechanical installation, we provide the engineering resources needed to integrate the SNR-KP800-VX into your kiosk system.

SDK / API

Development resources help engineers integrate printer functions and device control into kiosk applications and host systems.

For application development

Communication Protocol

Command and communication documentation supports printing control, cutter operation and printer status management through the host system.

For device control

Test Tools

Test utilities help engineers verify communication, printing, cutting and status detection during development and system commissioning.

For testing & debugging

3D Drawings

Mechanical drawings support printer mounting, bezel alignment, paper path planning and paper roll positioning inside the kiosk cabinet.

For mechanical integration

INTEGRATION FAQ

Frequently Asked Questions About SNR-KP800-VX

What is the anti-drag function on the SNR-KP800-VX?

The anti-drag system helps protect the printing process when a user attempts to pull the ticket before printing is complete, reducing the risk of user-pull related paper jams in unattended kiosks.

What ticket and paper conditions can the printer detect?

The SNR-KP800-VX supports ticket-blocked, ticket-taken, paper-low, paper-out and black-mark detection, helping the kiosk application monitor important ticket and paper conditions.

What paper widths and roll sizes does the SNR-KP800-VX support?

The printer supports 79.5 ±0.5mm and 82.0 ±0.5mm thermal paper. Paper roll diameter can reach up to 160mm in horizontal installation or 200mm in vertical installation with the appropriate holder.

Can the paper roll be installed in different positions?

Yes. The paper holder supports horizontal, vertical and angled mounting configurations, allowing the printer to adapt to different kiosk cabinet layouts and available installation space.

What communication interfaces are available?

The SNR-KP800-VX supports RS232C and USB 2.0 communication. Supported serial baud rates include 9600, 19200, 38400 and 115200.

What technical resources are available for kiosk integration?

SDK/API resources, communication protocol documentation, test tools and 3D drawings are available to support application development, device testing and mechanical integration.

Explore Other Kiosk Printer Options

Compare other SNROKIOSK printer models for different paper handling, media and self-service kiosk requirements.

PROJECT SUPPORT

Need Help Integrating the SNR-KP800-VX?

Tell us about your kiosk application, cabinet layout, paper roll requirements and controller interface. Our team can help evaluate the printer mounting, paper path and communication configuration for your project.
