KIOSK PRINTER

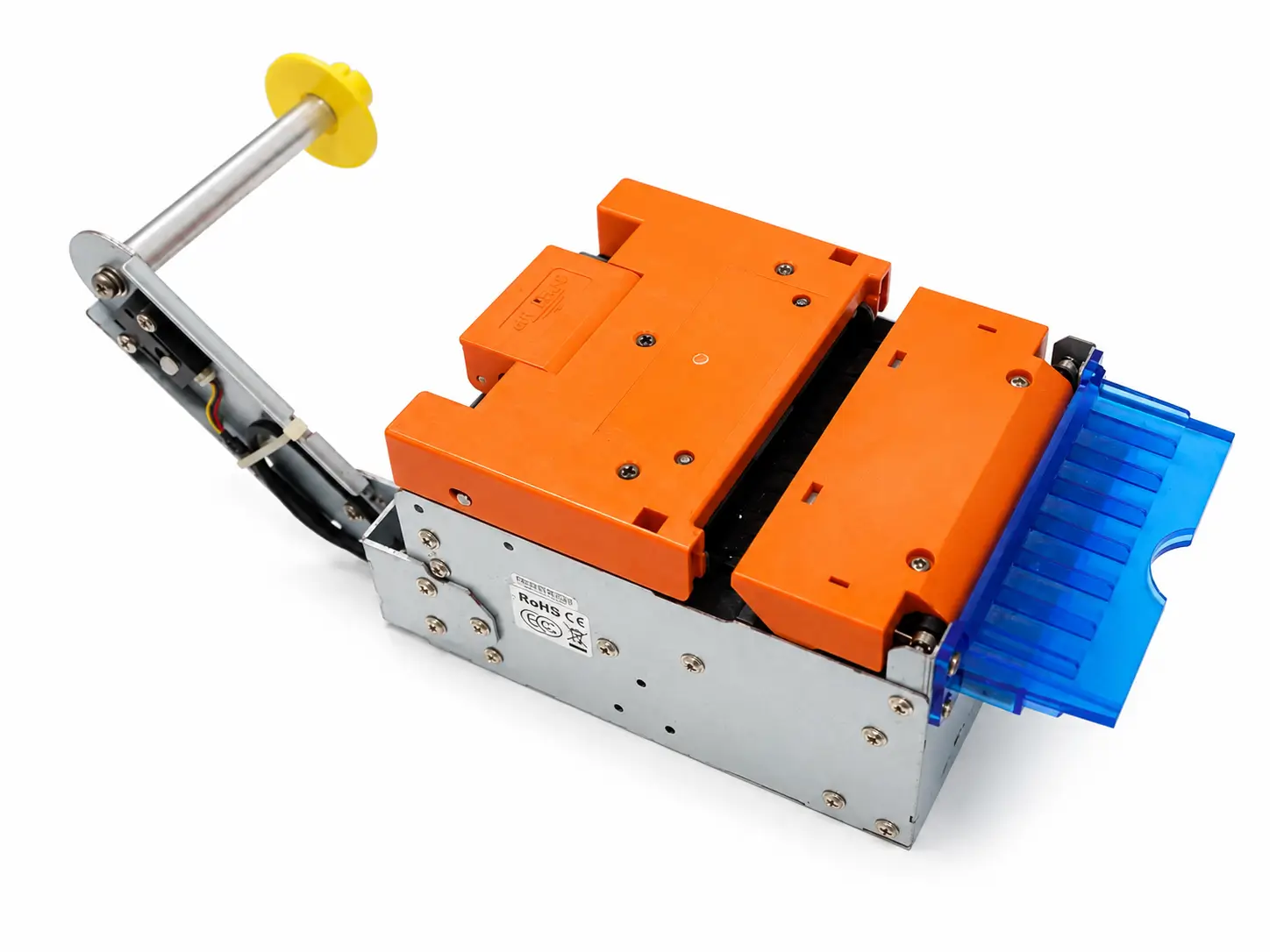

SNR-KP802-VX 80mm Kiosk Thermal Printer with Presenter
SNR-KP802-VX is an 80mm kiosk printer with presenter and retract function, designed for controlled receipt and ticket delivery in unattended self-service systems.
- Paper Width - 58 / 60 / 80 / 82.5mm
- Paper Thickness - 80 / 82.5mm
- Paper Roll Diameter - 0.06 - 0.20mm
- Print Speed - Up to 250mm/s
- Paper Handling - Present & Retract
- Interfaces - RS232C / USB 2.0
- Automatic Cutter - Full Cut / Partial Cut
SDK/API · Protocol · Test Tool · 3D Drawings Available
PAPER HANDLING
Controlled Receipt Delivery for Unattended Kiosks
SNR-KP802-VX integrates thermal printing, automatic cutting, ticket presentation and retract handling to provide controlled receipt delivery in unattended self-service systems.
01 High-Speed Thermal Printing
Prints receipts and tickets at speeds up to 250mm/s with 203 DPI thermal printing resolution.
02 Automatic Cutting
Integrated auto-cutter supports full and partial cutting for different receipt and ticket handling requirements.
03 Presenter & Hold
The integrated presenter delivers the completed ticket to the output position for controlled user collection.
04 Ticket Retract
Retracts forgotten or uncollected tickets to support secure document handling in unattended environments.
TECHNICAL SPECIFICATIONS
SNR-KP802-VX Technical Specifications
Key printing, paper-handling, communication and electrical specifications for kiosk integration and project evaluation.
Printing
Print Method
Thermal Dot Line
Resolution
203 DPI, 8 dots/mm
Print Speed
Up to 250mm/s
Printing Width
80mm max.
Print Head Life
Minimum 100km
Printer Life
15,000,000 print lines
Auto-Cutter Life
1,000,000 cuts — 60μm paper ; 750,000 cuts — 200μm paper
Paper
Paper Type
Thermal Paper Roll
Paper Width
79.5 ±0.5mm / 82.0 ±0.5mm
Paper Thickness
0.06–0.20mm
Roll Diameter
160mm horizontal / 200mm vertical
Dimensions
119.28 × 153.62 × 86.13mm
Weight
Approx. 1.49kg without paper roll
Interface & Electrical
Connectivity
RS232C / USB 2.0
Baud Rate
9600 / 19200 / 38400 / 115200
Power Supply
24V DC ±10%
Typical Current
1.5A continuous / 3.2A peak
Operating Temperature
-10°C to 60°C
Storage Temperature
-20°C to 70°C
Note: Final interface, mounting bracket, paper roll position, cable definition and sensor settings should be confirmed according to the kiosk cabinet structure and project requirements.

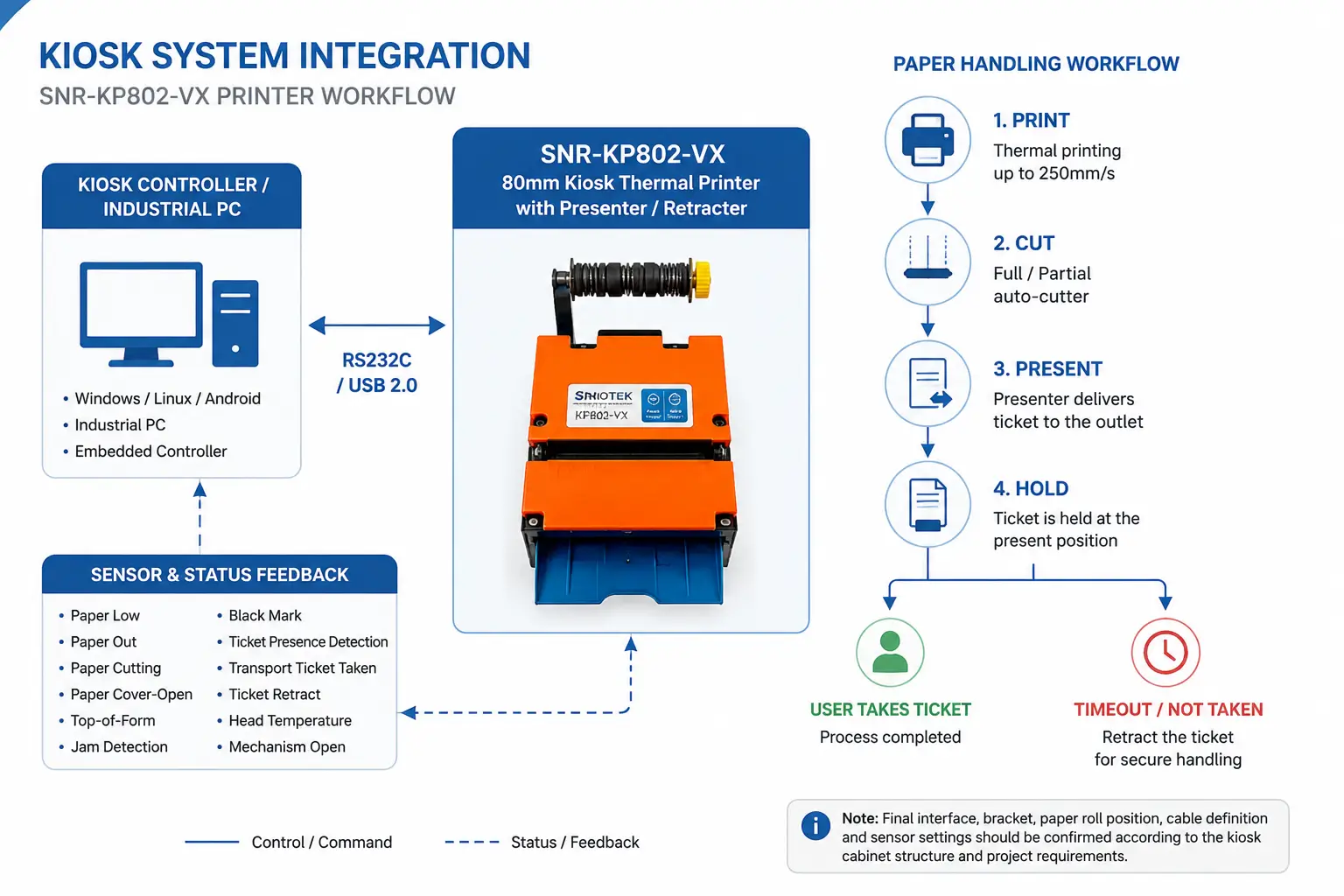

SYSTEM INTEGRATION
80mm Kiosk Printer with Presenter Integration
Integrate the SNR-KP802-VX with kiosk controllers through RS232C or USB 2.0, with presenter, retract and sensor feedback for reliable unattended receipt handling.
Learn more about how presenter, retract and ticket-taken detection differ in our Kiosk Printer Presenter Guide.
01 — RS232C & USB Communication
Connect the SNR-KP802-VX to an industrial PC, embedded controller or kiosk system through RS232C or USB 2.0.
02 — Ticket & Paper Status Monitoring
Manage ticket presentation and retract functions for controlled receipt delivery and secure handling of uncollected documents.
03 — Sensor & Status Monitoring
Monitor paper, cutter, presenter and mechanism status to help the kiosk application detect operating conditions and handle exceptions.
Planning your kiosk installation?
Send us your cabinet layout, paper roll requirements and controller interface. We can help evaluate the mounting, paper path and communication configuration for your project.
APPLICATIONS
Built for Unattended Receipt & Ticket Printing
Designed for self-service systems that require reliable thermal printing, controlled ticket presentation and secure handling of uncollected receipts.

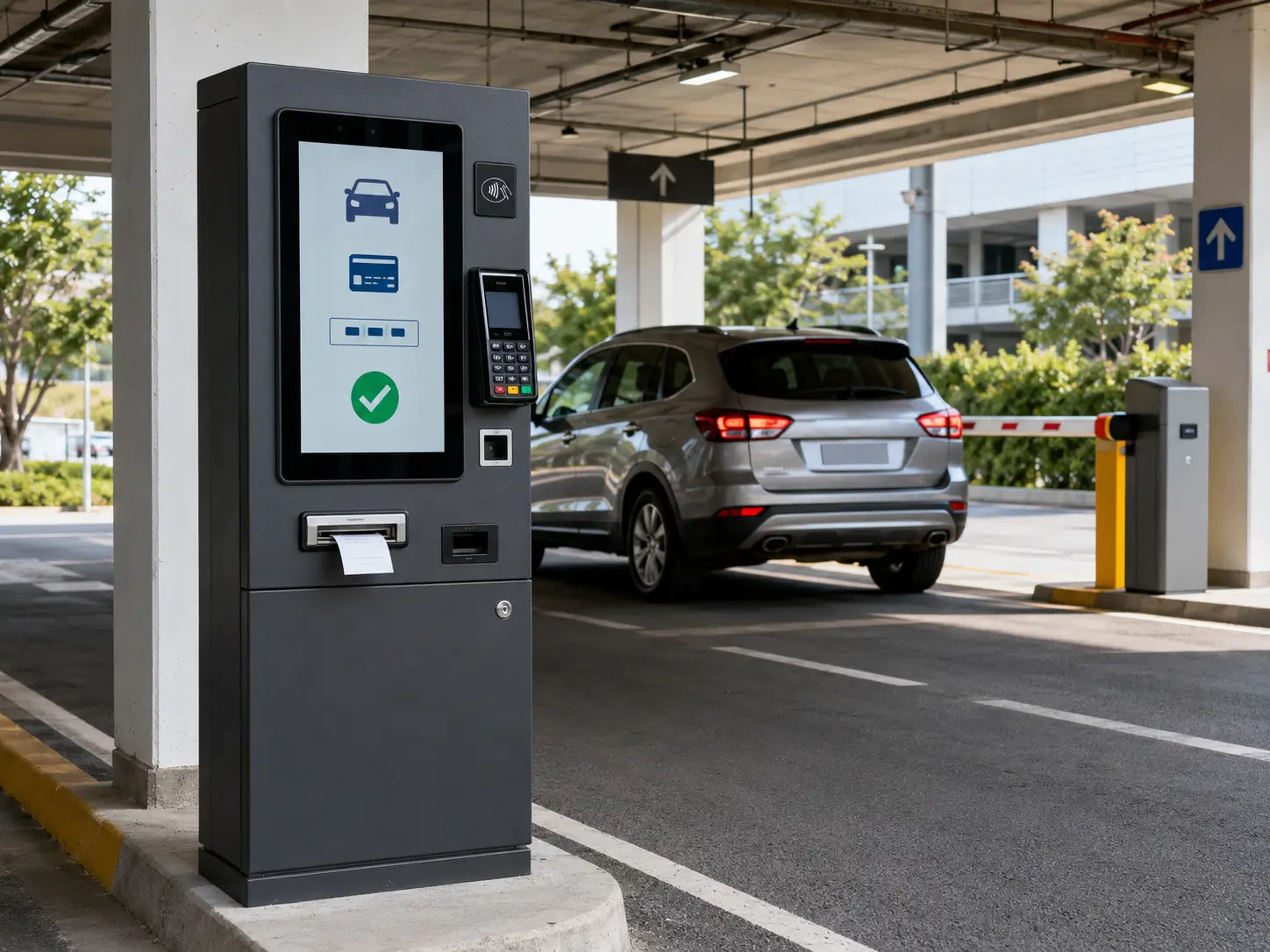

Parking & Payment Terminals
Print and present parking receipts, payment records and transaction tickets through unattended terminals.

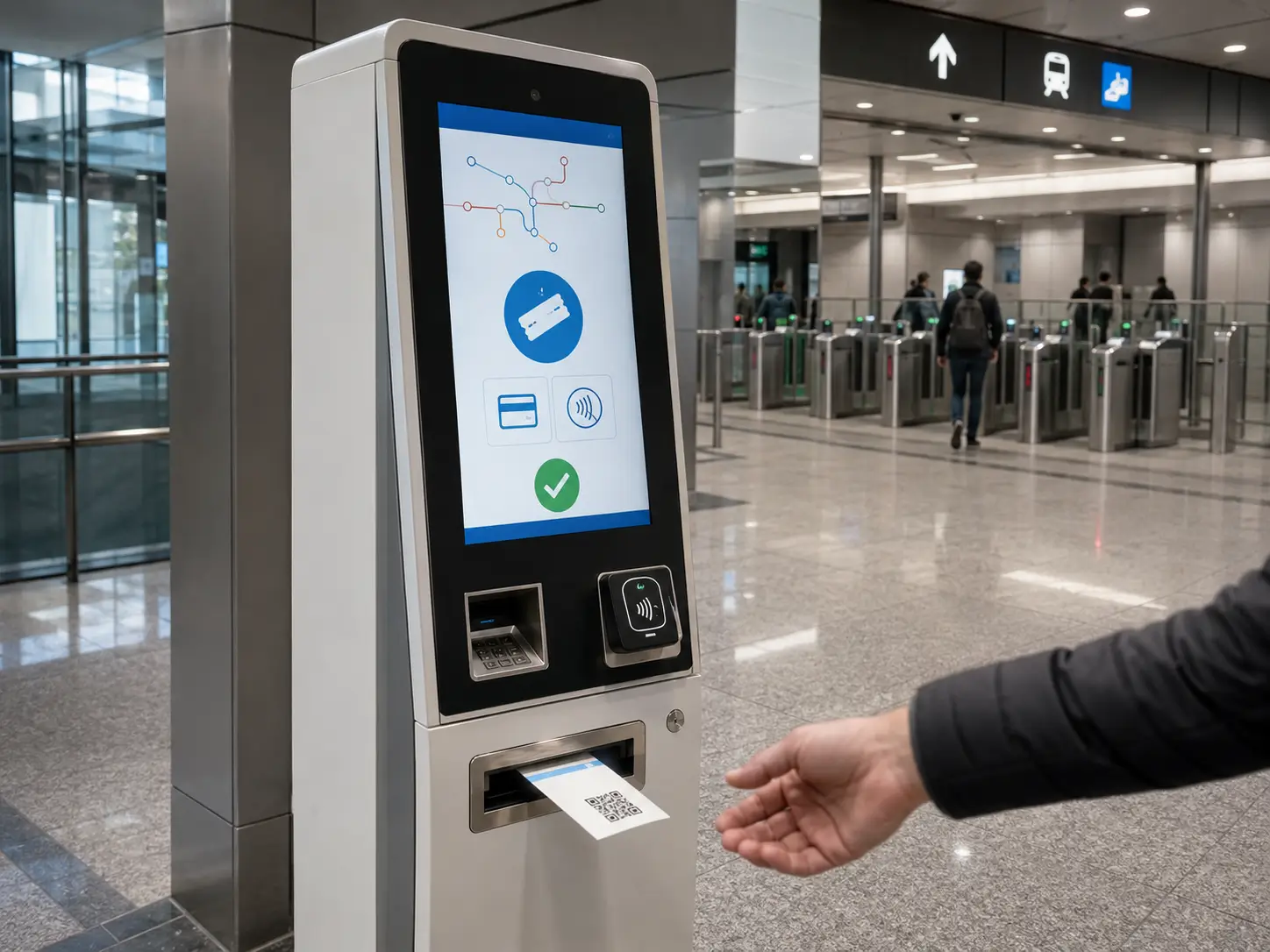

Ticketing & Transportation
Deliver printed tickets and travel documents through ticket vending machines and passenger self-service systems.

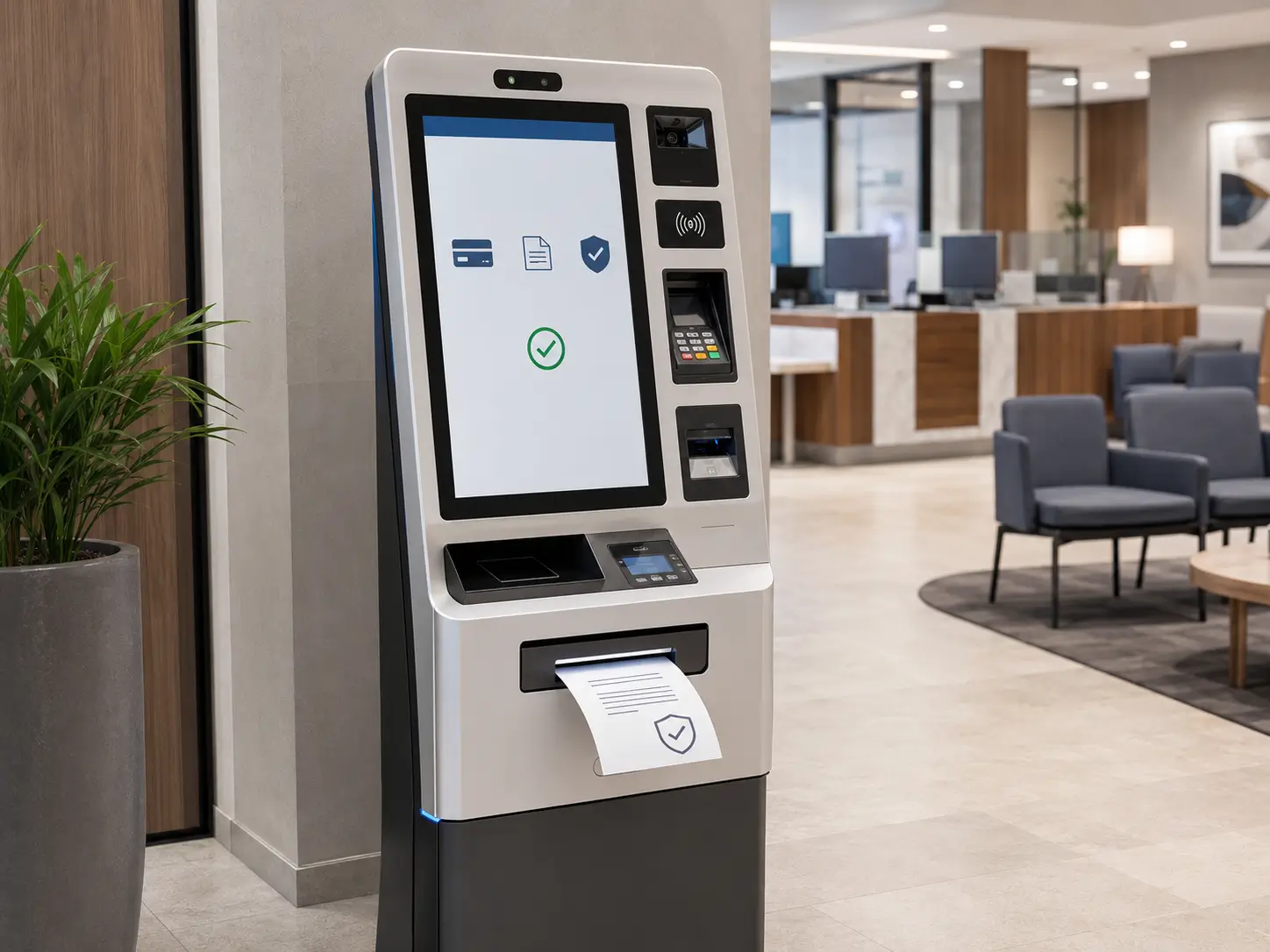

Banking Self-Service Kiosks
Provide controlled delivery of transaction receipts and sensitive documents, with retract handling for uncollected printouts.

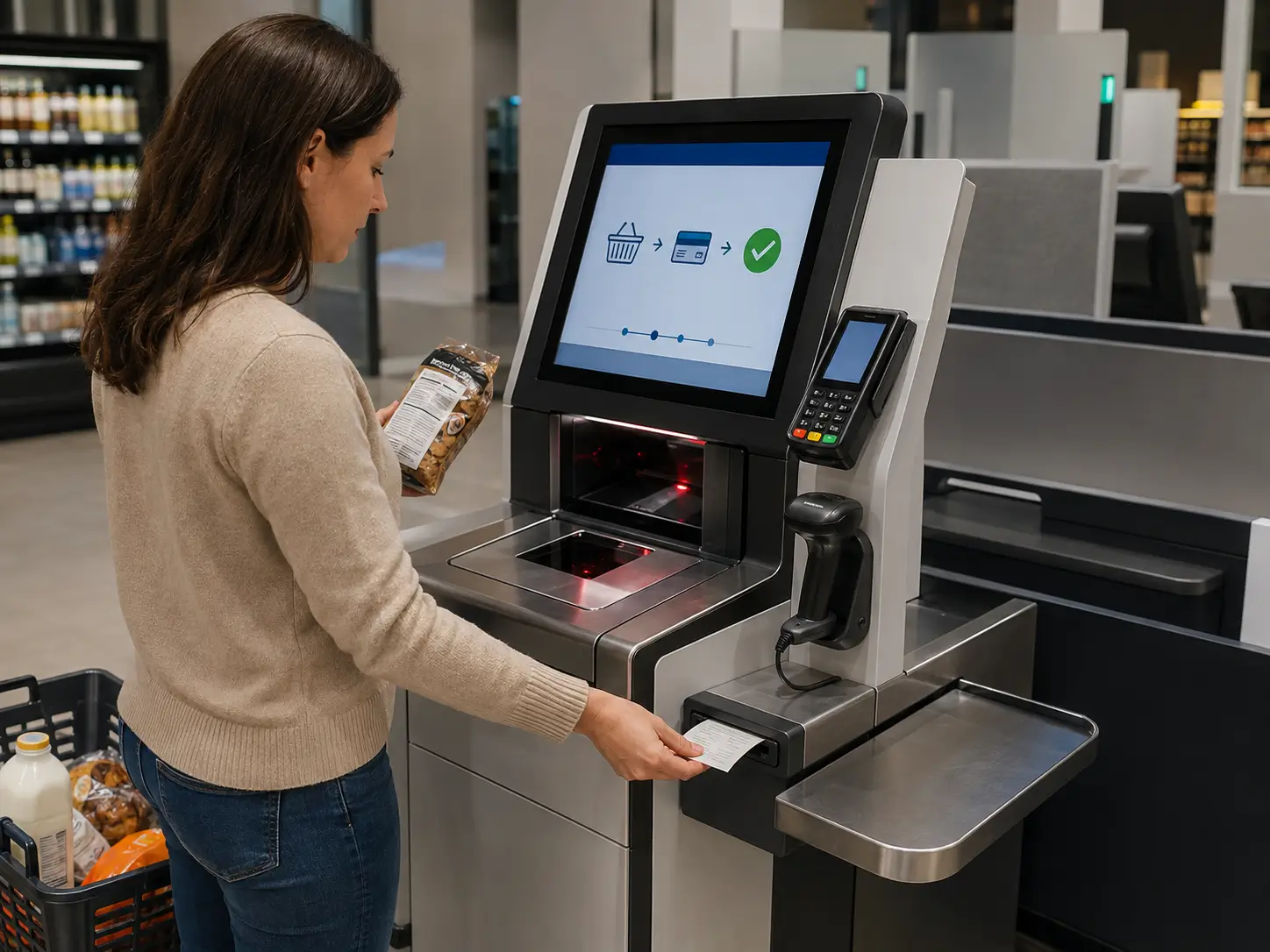

Retail Self-Checkout
Print and present transaction receipts through unattended checkout and self-payment systems.
ENGINEERING SUPPORT
Complete Resources for Faster Printer Integration
From mechanical installation to software development, we provide the technical resources your engineering team needs to integrate the SNR-KP802-VX into unattended kiosk systems.
SDK / API
SDK/API resources help developers integrate printing, cutting, presenter and retract functions into kiosk applications and host systems.
For application development
Communication Protocol
Command and communication references support printer control, paper handling and device status monitoring.
For device control
Test Tools
Test utilities help engineers verify communication, printing, cutting, presenter and sensor functions during development.
For testing & debugging
3D Drawings
Mechanical drawings support installation-space evaluation, mounting design, paper roll positioning and kiosk enclosure development.
For mechanical integration
INTEGRATION FAQ
Frequently Asked Questions About SNR-KP802-VX
What is the presenter function on the SNR-KP802-VX?
The presenter controls ticket delivery after printing and cutting are completed, allowing the finished receipt or ticket to be presented at the output position for user collection.
Can the SNR-KP802-VX retract an uncollected receipt?
Yes. The retract function can pull back forgotten or uncollected receipts, making it suitable for unattended kiosks and applications involving privacy-sensitive transaction documents.
What paper widths does the SNR-KP802-VX support?
The printer supports 79.5 ±0.5mm and 82.0 ±0.5mm thermal paper, with a maximum printing width of 80mm.
What communication interfaces are available?
The SNR-KP802-VX supports RS232C and USB 2.0 communication for integration with industrial PCs, embedded controllers and kiosk systems.
What paper roll size can be used?
The printer supports paper rolls up to approximately 160mm in horizontal installation and up to 200mm in vertical installation with the appropriate paper holder.
Do you provide SDK and technical resources for integration?
Yes. SDK/API resources, communication protocol documentation, test tools and 3D drawings are available to support software development, device testing and mechanical integration.
RELATED PRODUCTS
Explore Other Kiosk Printer Options
Compare other SNROKIOSK printer models for different paper handling, installation and ticketing requirements.
SNR-KP800-VX 80mm Kiosk Thermal Printer
80mm kiosk printer for self-service terminals requiring high-speed receipt printing without presenter and retract functions.

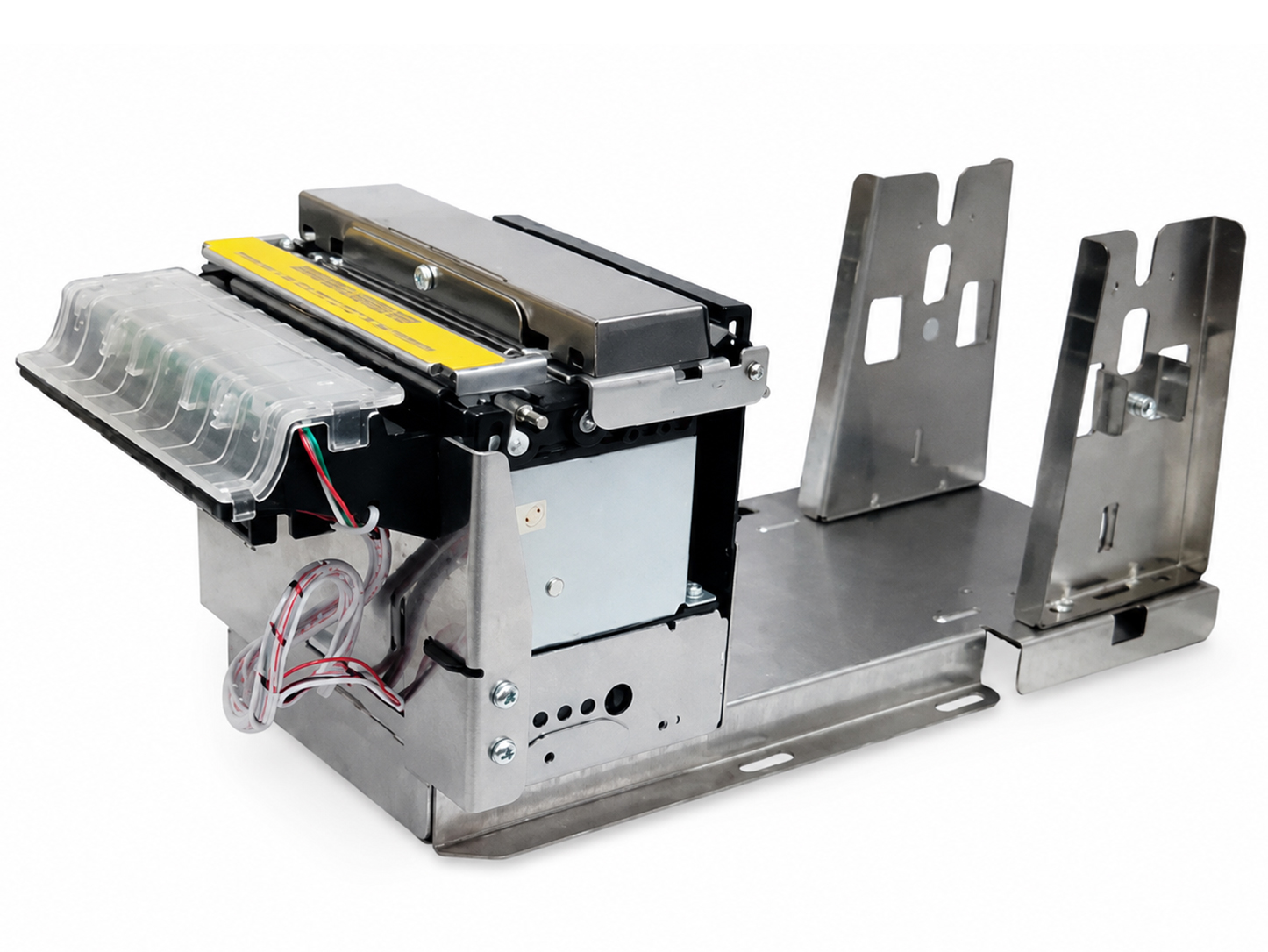

SNR-KP805 Kiosk Thermal Printer
