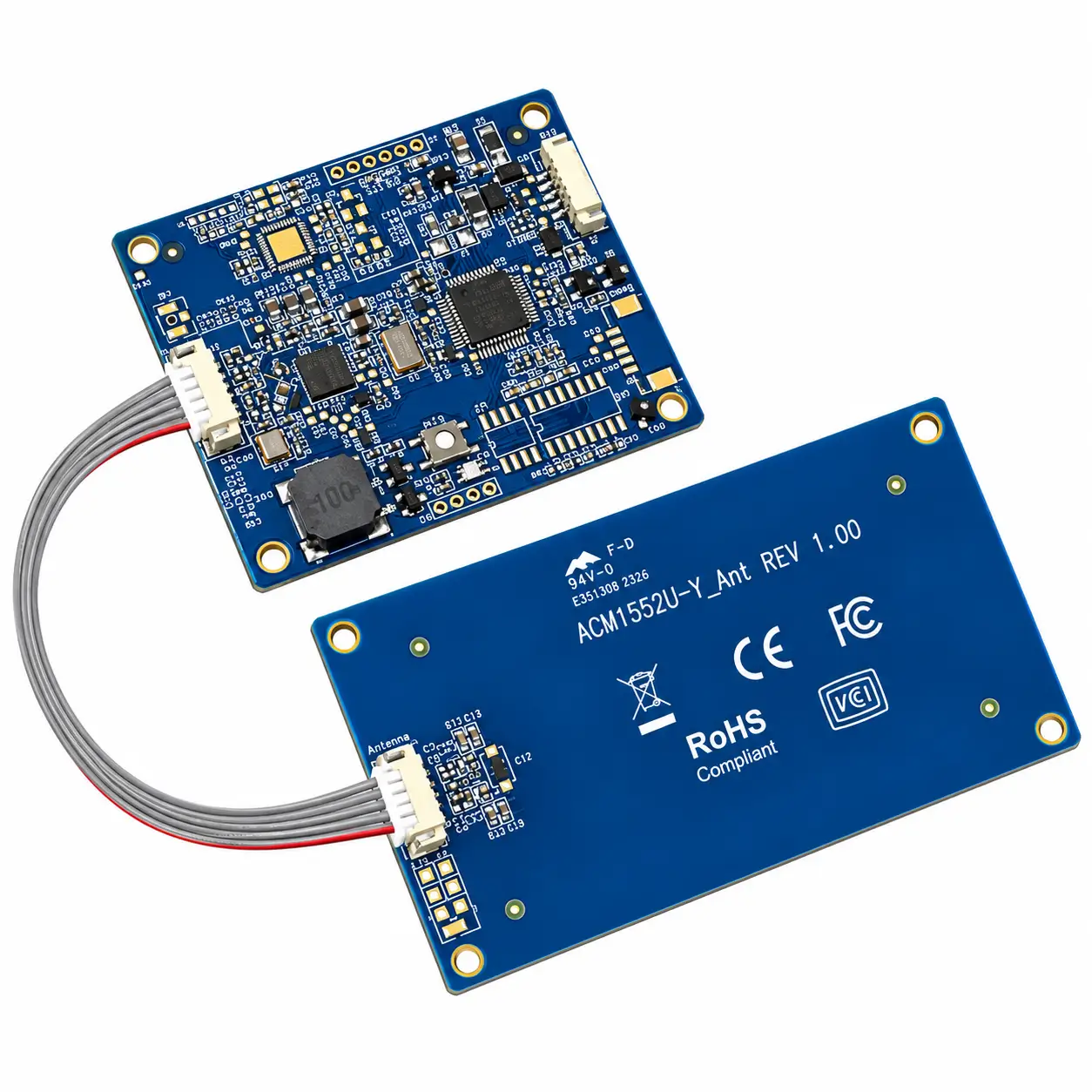

ACM1552U-Y3 USB NFC Reader Module
ACM1552U-Y3 is a 13.56 MHz USB NFC reader module designed for embedded integration. The main board and antenna board are separated, allowing the antenna to be positioned at the front panel or another suitable location inside the equipment.
The reader supports ISO 14443 Type A and B, ISO 15693 and ISO 18092, with USB CCID and PC/SC compatibility for host communication.
- 13.56 MHz contactless NFC technology
- Supports ISO 14443 Type A & B, ISO 15693 and ISO 18092
- Supports MIFARE Classic, Mini, Ultralight, FeliCa and Topaz
- Reader/Writer, Keyboard Emulation and Card Emulation modes
- Optional ISO 7816 Class A SAM interface
- Detachable antenna board for flexible installation
- USB CCID and PC/SC compliant
- Windows, Linux, macOS and Android support
TECHNICAL SPECIFICATIONS
ACM1552U-Y3 NFC Reader Module
13.56 MHz contactless NFC reader module with detachable antenna board for embedded systems, self-service kiosks and other equipment requiring flexible card reader integration.
- Operating Frequency: 13.56 MHz
- Supported Cards ISO 14443 A/B, ISO 15693, ISO 18092
- Card Families MIFARE Classic / Mini / Ultralight, FeliCa, Topaz
- Reading Distance Up to 70 mm, tag dependent
- ISO14443 Speed 106 / 212 / 424 / 848 kbps
- ISO15693 Speed 26 / 53 kbps
- NFC Modes Reader/Writer, Keyboard Emulation, Card Emulation
- Anti-collision Supported
- SAM Interface Optional ISO 7816 Class A, 5V, SIM-size
- SAM Protocol T=0 / T=1
- Host Protocol USB CCID
- USB Interface USB Type-A
- USB Speed USB 2.0 Full Speed, 12 Mbps
- Supply Voltage 5 VDC
- Current 300 mA max.
- Operating Temperature 0 to 60°C
- Humidity 90% RH, non-condensing
- Main Board 55.0 × 45.0 × 6.5 mm
- Antenna Board 91.0 × 49.5 × 5.0 mm
- Weight 27.7 g ±2 g
- USB Cable 1 m detachable, optional
- MTBF 500,000 hours
- Warranty 1 year
APPLICATIONS & INTEGRATION
Designed for Embedded Kiosk Integration
The detachable antenna design gives system integrators more flexibility when installing the NFC interface inside a kiosk or self-service machine. The main board can be installed separately from the antenna, allowing the contactless reading area to be positioned behind the equipment’s front panel.
Typical Applications
- Self-service kiosks
- Vending / kiosks
- Access control terminals
- Transportation equipment
- e-Payment terminals
- e-Government equipment
- Visitor management systems
- Embedded NFC applications
Mechanical Integration
The ACM1552U-Y3 consists of a compact main board and a separate antenna board. This structure allows the antenna to be mounted at a different position from the main electronics, which is useful when integrating the reader behind a kiosk front panel.
Main Board
55.0 × 45.0 × 6.5 mm
Antenna Board
91.0 × 49.5 × 5.0 mm
USB CCID / PC/SC
ACM1552U-Y3 communicates with the host system through USB CCID and is compatible with PC/SC applications.
Software Support
Windows, Linux, macOS, Android
Development Resources
CT-API, SDK, USB firmware upgrade
INTEGRATION FAQ
Frequently Asked Questions
What frequency does the ACM1552U-Y3 use?
ACM1552U-Y3 operates at 13.56 MHz for contactless NFC applications.
What cards are supported by the ACM1552U-Y3?
The module supports ISO 14443 Type A and B, ISO 15693 and ISO 18092, including MIFARE Classic, Mini, Ultralight, FeliCa and Topaz card families.
Can the antenna be installed separately from the reader board?
Yes. ACM1552U-Y3 uses a detachable antenna board, allowing the antenna and main board to be positioned separately during equipment integration.
Does ACM1552U-Y3 support Android?
Yes. The datasheet lists Windows, Linux, macOS and Android as supported operating systems.
Can the ACM1552U-Y3 be integrated into a self-service kiosk?
Yes. Its detachable antenna structure and USB CCID interface are suitable for embedded integration in kiosks and other self-service equipment.
RELATED PRODUCTS
Explore Related Card Reading & Handling Products
Compare related SNROKIOSK card readers and card handling modules for different card technologies and self-service integration requirements.

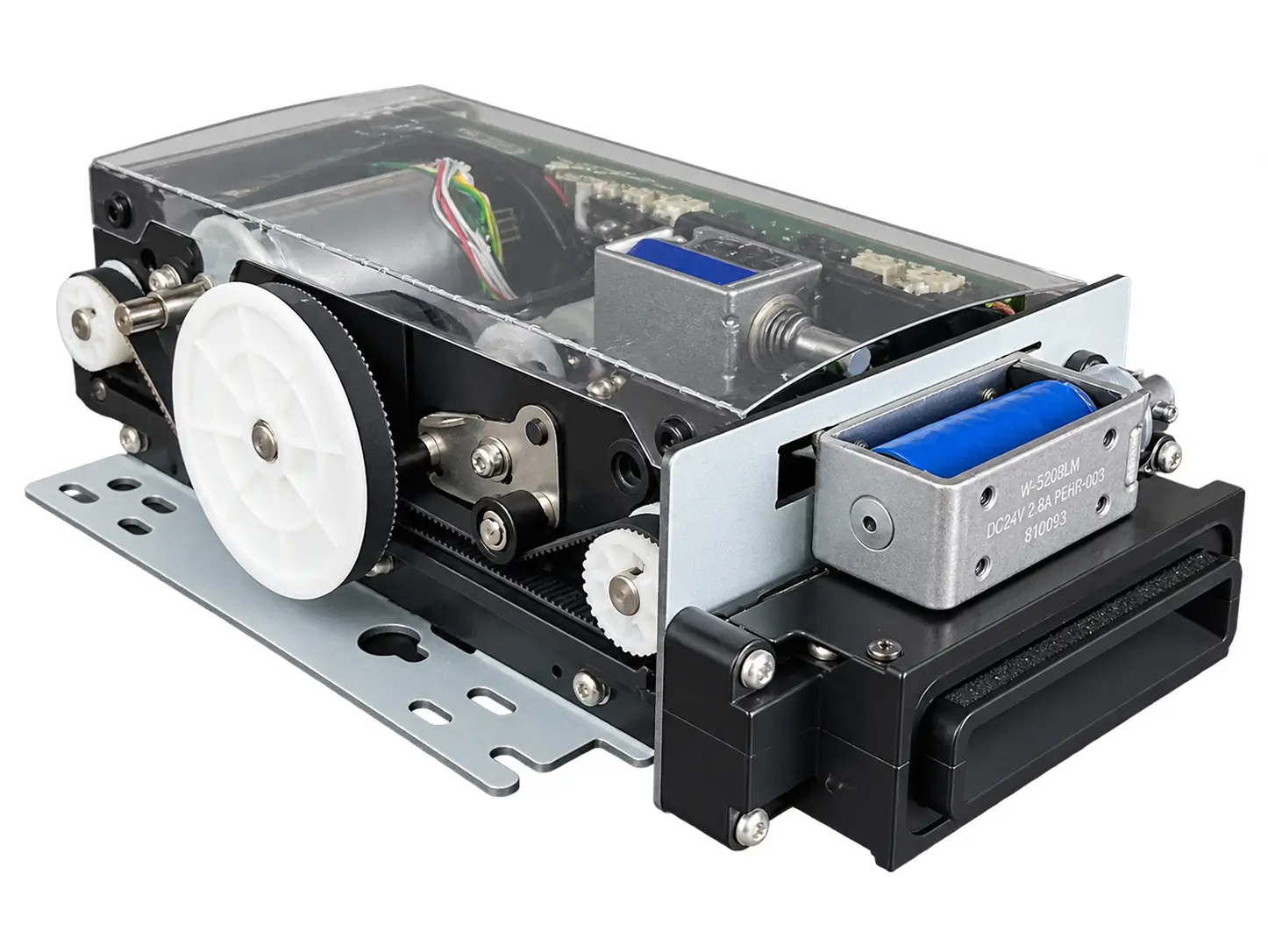

SNR-MR800 Motorized Multi-Card Reader Writer
