CARD READER
SNR-MR800 Motorized Multi-Card Reader/Writer
The SNR-MR800 motorized multi card reader writer supports magnetic stripe read/write, contact IC, 13.56MHz contactless IC and SAM cards for secure self-service terminal integration.
- Card Technologies - Magnetic / IC / RF / SAM
- Magnetic - Track 1 / 2 / 3 Read & Write
- Interfaces - RS-232
- Security - Anti-Theft Reading & Encryption
3D Drawings · SDK/API · Protocol · Test Tool Available
KEY FEATURES
Secure Multi-Card Processing for Unattended Terminals
Designed for secure self-service applications requiring magnetic card read/write, IC and contactless card processing, controlled card transport and enhanced card security.
01 — Multi-Card Read/Write
Supports magnetic stripe Track 1/2/3 read/write, contact IC read/write, 13.56MHz contactless IC read/write and SAM card operation in one module.
02 — Anti-Theft Magnetic Reading
Magnetic electromagnetic interference helps protect against unauthorized side-channel magnetic reading and card theft in unattended applications.
03 — Secure Card Processing
Supports hardware and algorithm-based encryption for secure card processing workflows in banking, payment and card verification applications.
04 — Motorized Card Handling
Motor-driven card insertion and ejection with rear card retention and an electrically controlled safety gate enables controlled card handling inside unattended terminals.
TECHNICAL SPECIFICATIONS
SNR-MR800 Motorized Multi Card Reader Writer Specifications
Key card compatibility, transport, communication and electrical specifications for self-service terminal integration.
Card Processing & Handling
Product Type
Motorized Multi-Card Reader/Writer
Magnetic Card
Track 1 / 2 / 3 Read/Write, Lo-Co & Hi-Co
Contact IC
ISO/IEC 7816, CPU / Memory / Logic Encryption Cards
Contactless IC
13.56MHz, Mifare Classic, ISO/IEC 14443 Type A/B
SAM Support
1 Integrated SAM Slot with Status Detection
Card Size
85.47–85.9 × 53.92–54.18mm
Card Thickness
0.7–0.9mm
Card Transport
Motorized Front Loading / Unloading + Rear Retention
Insertion Modes
Command / Magnetic Sensor Trigger
Standard Card Speed
260mm/s ±5%
Maximum Card Speed
400mm/s
Card Exit Length
32 ±2mm
Security, Interface & Electrical
Communication
RS-232 Half-Duplex · DB-9
Operating Voltage
24VDC ±10%
Peak Current
<2.5A
Quiescent Current
<0.1A
Gate Design
Dual Protective Gates
Safety Gate
Electrically Controlled · Default Closed
Anti-Theft Reading
Magnetic Electromagnetic Interference
Encryption
Hardware & Algorithm-Based
Power-Failure Protection
Backup Capacitor Supported
Operating Temperature
0°C to 50°C
Device Lifetime
>1.2 Million Cycles
MTBF
>200,000 Hours*
Net Weight
Approx. 1.0kg
Card Compatibility Note: Final magnetic stripe, contact IC, contactless IC and SAM compatibility should be confirmed with actual card samples and project requirements before deployment.
APPLICATIONS & INTEGRATION
Secure Card Processing for Self-Service Systems
The SNR-MR800 motorized multi card reader writer combines multi-card read/write, motorized card handling and security features for unattended self-service systems.
Typical Applications
01 — Banking & Finance
Secure magnetic, IC and contactless card processing for banking and financial self-service terminals.
02 — Payment & Verification
Multi-card read/write and secure card handling for payment kiosks and card verification systems.
03 — Access & Identity
Card processing for access control, membership, identity verification and credential-based service terminals.
04 — Parking & Transportation
Magnetic, IC and contactless card read/write for parking, transportation and unattended service systems.
Integration Support
RS-232 communication allows the host controller to manage card transport, read/write operations and device status within the self-service system.
Host Communication
RS-232 Half-duplex serial communication for host control and status handling.
Motorized Transport
Insert · Position · Eject · Retain: Motorized front card loading and unloading with rear card retention for controlled card handling.
Secure Processing
Anti-Theft · Encryption: Magnetic anti-theft reading and hardware or algorithm-based encryption support secure card processing workflows.
Card Technologies
Mag · IC · 13.56MHz RF · SAM: Multiple card technologies can be processed through one integrated reader module.
Integration Resources Available
Integration Note: Confirm actual card samples, magnetic read/write requirements, security workflow, power design and communication protocol before prototype integration.
Need to Verify Your Card Requirements?
Send us your card type, magnetic stripe specification, IC/RF requirements and required security functions. We can help evaluate the suitable SNR-MR800 configuration for your project.
INTEGRATION FAQ
Frequently Asked Questions About SNR-MR800
Common questions about magnetic card read/write, IC and contactless card compatibility, security functions and power-failure card handling.
Can the SNR-MR800 read and write magnetic cards?
Yes. The SNR-MR800 supports Track 1, Track 2 and Track 3 magnetic card read/write, including Lo-Co 300 Oe and Hi-Co 2750 Oe magnetic cards.
What contact IC cards does the SNR-MR800 support?
The SNR-MR800 supports ISO/IEC 7816 CPU cards with T=0/T=1 protocols, synchronous IC cards, SL4442/SLE4428 and AT24C01–AT24C64 memory cards. AT88SC102 reading is also supported.
What 13.56MHz contactless cards are supported?
The SNR-MR800 supports 13.56MHz Mifare Classic and ISO/IEC 14443 Type A/B contactless cards for read/write operation.
What does the anti-theft reading function do?
The SNR-MR800 uses magnetic card electromagnetic interference to help prevent unauthorized side-channel magnetic reading and card theft in unattended applications.
What happens to the card during a power failure?
With a suitable backup capacitor, the SNR-MR800 can move the card to the holding position or rear retention area during power-failure handling.
RELATED PRODUCTS
Explore Related Card Reading & Handling Products
Compare related SNROKIOSK card readers and card handling modules for different card technologies and self-service integration requirements.

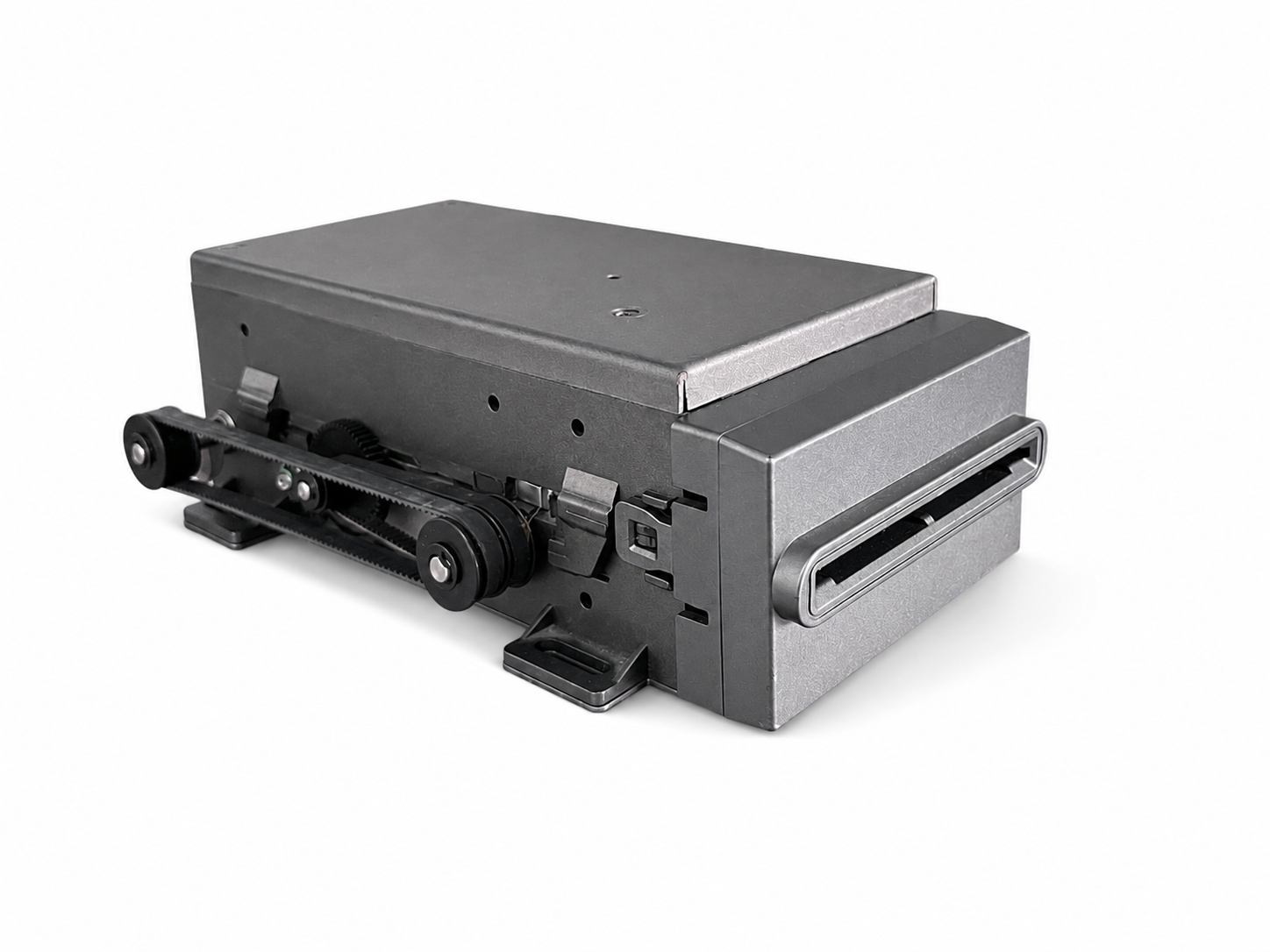

SNR-MR100 Motorized Card Reader Writer
