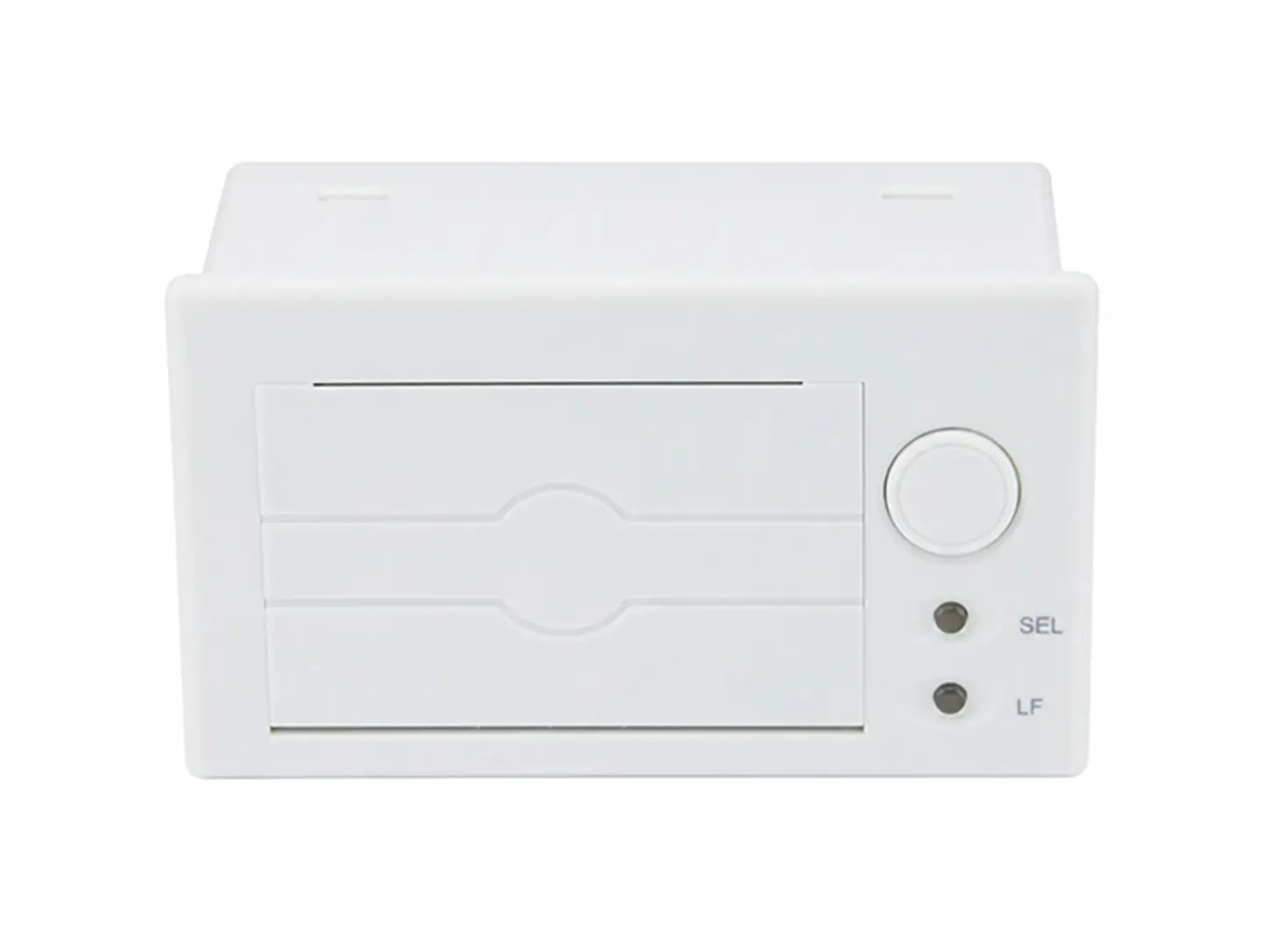

SNR-EP5809 58mm Embedded Thermal Panel Printer

The SNR-EP5809 58mm embedded thermal panel printer features ESC/POS-compatible command control, flexible interface options and a space-saving design for instruments and embedded equipment.

3D Drawings · SDK/API · Protocol · Test Tool Available

KEY FEATURES

Compact Printing for Space-Limited Embedded Equipment

Designed for compact instruments and embedded devices with simple paper access, flexible host communication and ESC/POS-compatible control.

Space-Saving Embedded Design

Integrated mounting ears and printer body provide a compact structure with only 55mm embedded depth for space-limited equipment.

ESC/POS-Compatible Control

Supports ESC/POS-compatible command control for straightforward host communication and software integration.

Flexible Interface Options

Serial, Parallel and RS-485 interface options support integration with different embedded controllers and host systems.

Easy Front Paper Access

A large front-door button provides convenient access to the paper compartment for routine paper replacement and maintenance.

TECHNICAL SPECIFICATIONS

SNR-EP5809 58mm Embedded Thermal Panel Printer Specifications

Key printing, paper, interface, power and installation specifications for embedded equipment integration.

Printing & Paper

Print Method: Line Thermal Printing
Resolution: 203 DPI, 8 dots/mm
Print Speed: 30mm/s
Print Dots: 384 dots/line
Printing Width: 48mm max.
Paper Width: 57.5 ±0.5mm
Max. Paper Roll: Ø35mm
Paper Loading: Easy-loading
Paper Thickness: 60–80μm
Print Head Length: 50km

Interface & Electrical

Interface: Serial / Parallel / RS-485
Command Compatibility: ESC/POS Compatible
Power Supply: DC5–8.5V, 3A / DC9–24V, 3A
Panel Opening: 103 × 57mm
Embedded Depth: 55mm
Overall Dimensions: 110 × 64 × 58mm
Net Weight: Approx. 200g without paper roll
Functions: Paper-Out Alarm / Overheat Protection / Self-Test
Operating Environment: 0–50°C, 10%–80% RH
Storage Environment: -20–60°C, 10%–90% RH
Reliability MCBF: (5–15) × 10⁶ lines

Note: Final interface configuration, power supply, cable definition and mounting method should be confirmed according to project requirements.

APPLICATIONS & INTEGRATION

Designed for Compact Embedded Applications

The SNR-EP5809 58mm embedded thermal panel printer combines a compact structure, ESC/POS-compatible control and flexible interface options for instruments, control panels and space-limited self-service equipment.

Typical Applications

Medical Instruments

Compact embedded printing for test results, records and transaction information in medical equipment.

Industrial Control Panels

Space-saving thermal printing for industrial control panels and embedded monitoring equipment.

Payment Terminals

Embedded receipt printing for compact payment and transaction terminals.

Queue Management Terminals

Compact ticket printing for queue management systems, service counters and customer service terminals.

Self-Service Kiosks

Space-saving receipt and information printing for compact self-service kiosks and unattended terminals.

Testing & Measurement Equipment

Embedded printing for test results, measurement data and operation records in laboratory and testing equipment.

Retail Service Devices

58mm receipt and information printing for compact retail service equipment.

Integration Support

Key mechanical and electrical parameters can be evaluated before prototype development to simplify printer integration into your equipment.

Panel Opening - 103 × 57mm

Confirm the front panel opening before enclosure production.

Embedded Depth - 55mm

Reserve sufficient internal depth, paper roll space and service access.

Host Interface - Serial / Parallel / RS-485

Select the required communication interface according to the host controller.

Power Supply - DC5–8.5V / DC9–24V

Confirm the required voltage range and current capacity before prototype testing.

Integration Resources Available

3D Drawings · SDK/API · Communication Protocol · Test Tool

Integration Note: Verify the panel opening, 55mm embedded depth, paper outlet alignment, paper roll space and service access before finalizing the enclosure design.

Planning an Embedded Printer Integration?

Share your panel dimensions, available installation space, power supply and controller interface with us for project evaluation.

INTEGRATION FAQ

Frequently Asked Questions About SNR-EP5809

Common questions about paper size, interfaces, ESC/POS control, installation and power requirements.

What paper size does the SNR-EP5809 support?

The SNR-EP5809 uses 57.5 ±0.5mm thermal paper with a maximum roll diameter of Ø35mm. It features easy paper loading and uses a manual tear method for receipt output.

What communication interfaces are available?

The SNR-EP5809 is available with Serial, Parallel and RS-485 interface options for integration with different host controllers and embedded systems.

Is the SNR-EP5809 compatible with ESC/POS commands?

Yes. The SNR-EP5809 is compatible with the EPSON ESC/POS command set and supports general ESC, FS and GS control codes for host-controlled printing.

What installation space is required?

The recommended panel opening is 103 × 57mm, with an embedded depth of 55mm. The overall printer dimensions are 110 × 64 × 58mm. Paper roll space, paper outlet alignment and service access should also be confirmed during enclosure design.

What power supply does the SNR-EP5809 require?

The SNR-EP5809 supports DC5–8.5V, 3A or DC9–24V, 3A power configurations. The required power rail and current capacity should be confirmed before prototype integration.
