PANEL PRINTER

SNR-EP5804 58mm Panel Mount Thermal Printer

58mm panel mount thermal printer SNR-EP5804 is designed for kiosks, instruments and embedded terminals requiring automatic cutting and flexible interface options.

Paper Width - 57.5 ±0.5mm
Paper Roll Diameter - Up to Ø50mm
Print Speed - Up to 100mm/s
Interface - RS-232C / TTL or USB
Power Input - 12–24V DC
Dimensions - 100.1*55.8*99.8 mm

Opening Options: Push-button or Key-lock
Shell Colors: Black · White · Silver

SDK/Driver · Communication Protocol · Test Tool · 3D Drawings Available

KEY FEATURES

Compact Panel Printing with Flexible Access

Designed for embedded equipment requiring compact panel installation, automatic cutting and convenient paper access.

01 — Compact Panel Mount Design

Compact 58mm printer structure with a 96.4 × 95.5mm panel opening, designed for integration into kiosks, instruments and embedded terminals.

02 — Automatic Paper Cutting

Command-controlled full and partial cutting supports automatic receipt and ticket output in unattended applications.

03 — Easy Paper Loading

Easy-loading paper design simplifies roll replacement and routine maintenance for embedded equipment.

04 — Flexible Opening Options

Available with push-button or key-lock paper-bucket opening configurations to match different equipment access requirements.

TECHNICAL SPECIFICATIONS

SNR-EP5804 58mm Panel Mount Thermal Printer Specifications

Key printing, paper, interface and mechanical specifications for embedded equipment integration.

01 — Printing

Print Method: Thermal Dot Line Printing
Resolution: 203 DPI / 384 Dots per Line
Print Speed: Up to 100mm/s
Effective Print Width: 48mm
Cutting: Full / Partial Cut, Command Controlled
Print Head Life: 100km

02 — Paper

03 — Interface & Power

04 — Mechanical & Environment

Installation Note: Reserve a panel opening of 96.4 × 95.5mm and at least 55.8mm installation depth. Confirm the required interface type and power input before prototype design.

APPLICATIONS & INTEGRATION

Designed for Embedded Printing Applications

Compact panel-mount design, automatic cutting and flexible interface options make the SNR-EP5804 suitable for kiosks, instruments and embedded equipment.

Typical Applications

Self-Service Kiosks

Embedded receipt printing for self-service terminals requiring compact panel installation and automatic cutting.

Queue Management Terminals

58mm queue ticket printing for service centers and customer management terminals.

Medical Instruments

Panel-mounted thermal printing for compatible medical and diagnostic equipment requiring integrated paper output.

Industrial Control Panels

Compact embedded printing for industrial control and monitoring equipment.

Payment Terminals

Compact receipt printing for payment, transaction and unattended service terminals.

Ticketing Equipment

Integrated 58mm ticket printing for compact ticket vending and service equipment.

Retail Service Devices

Receipt and information printing for compact retail and customer service equipment.

PANEL INTEGRATION

What to Confirm Before Installation

Key mechanical and electrical parameters can be evaluated before prototype development to simplify printer integration into your equipment.

Panel Opening - 96.4 × 95.5mm

Reserve the specified panel opening during enclosure design.

Installation Depth - At Least 55.8mm

Allow sufficient internal depth for printer installation.

Host Interface - RS-232C / TTL or USB

Confirm the required communication interface before prototype build.

Power Supply - 12–24V DC

Confirm the system power configuration before integration.

Configuration Options

Opening Method – Push-button / Key-lock
Shell Color – Black / White / Silver

Integration Resources Available

SDK/Driver · Communication Protocol · Test Tool · 3D Drawings

Technical resources are available to support mechanical installation, hardware testing and software integration.

FAQ

Frequently Asked Questions About SNR-EP5804

Common questions about paper size, automatic cutting, interfaces, installation and power requirements.

What paper size does the SNR-EP5804 support?

The SNR-EP5804 supports 57.5 ±0.5mm thermal paper with a paper thickness of 56–105μm. The maximum supported paper roll diameter is 50mm.

Does the SNR-EP5804 have an automatic cutter?

Yes. The SNR-EP5804 supports command-controlled full and partial cutting for automatic receipt or ticket output.

Which communication interfaces are available?

The SNR-EP5804 is available with RS-232C / TTL or USB communication options. Please confirm the required interface before ordering.

What power input does the printer require?

The SNR-EP5804 supports 12–24V DC power input. The required voltage should be confirmed before prototype integration.

Is a key-lock version available?

Yes. The SNR-EP5804 is available with push-button or key-lock paper-bucket opening configurations. Black, white and silver shell colors are also available.

What panel opening should be reserved for installation?

The recommended panel opening is 96.4 × 95.5mm. At least 55.8mm installation depth should be reserved inside the equipment.

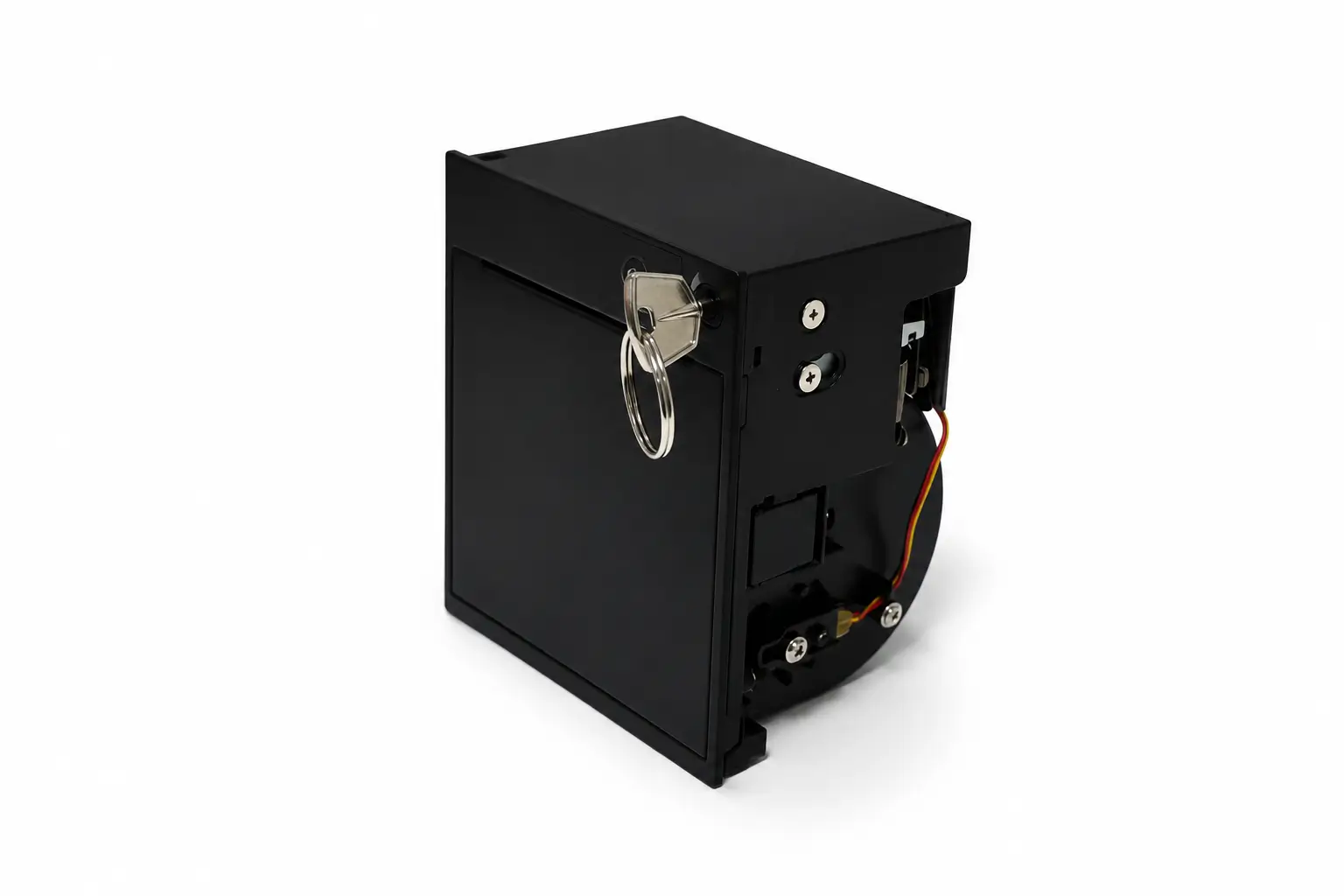

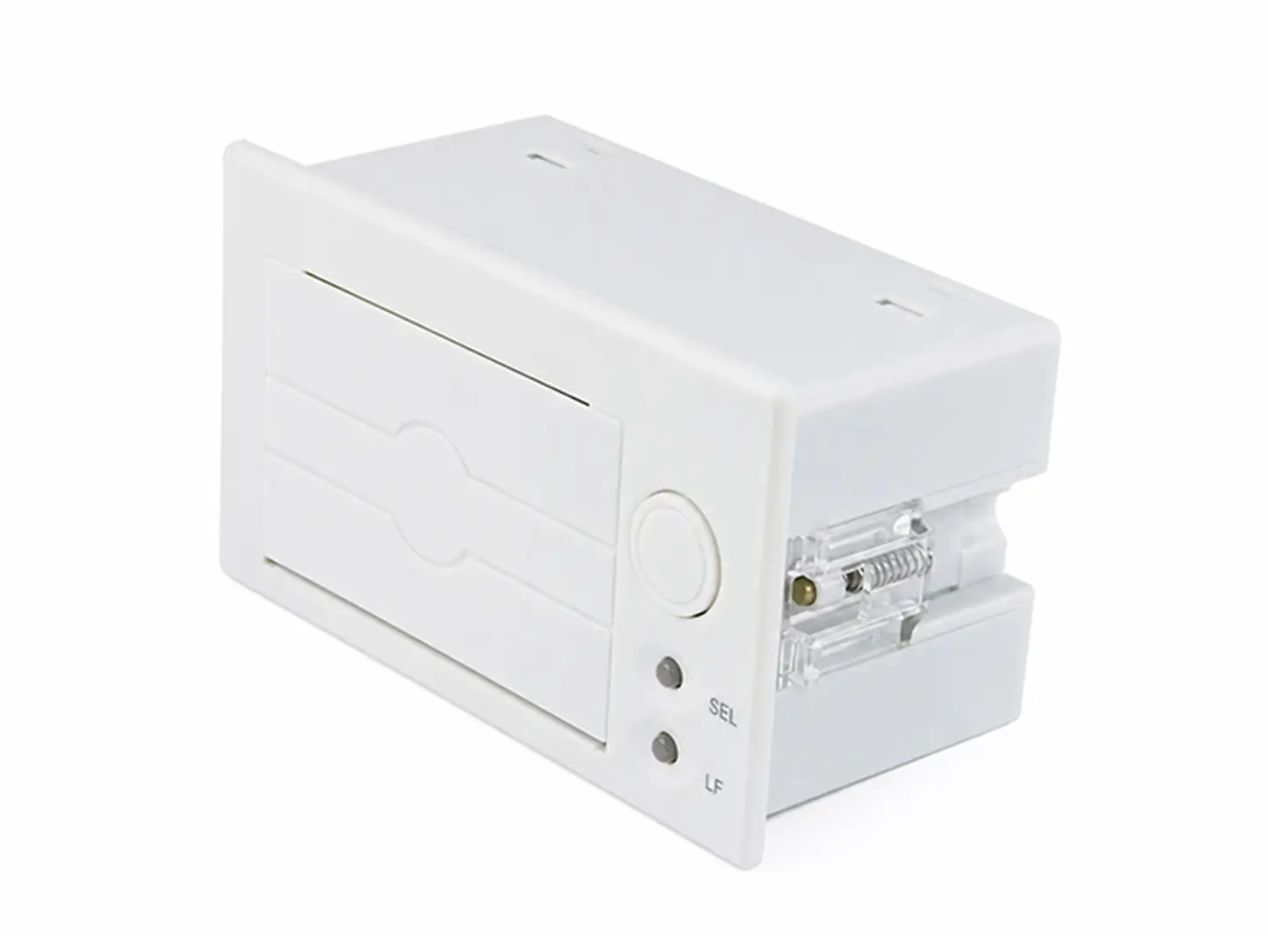

Explore Other Panel Printer Options

Compare other SNROKIOSK panel printer models for different paper widths, installation spaces and embedded printing requirements.

Explore All Kiosk Hardware →

PROJECT SUPPORT

Need the SNR-EP5804 for Your Project?

Share your required interface, power input, opening method, shell color and quantity. We can help confirm the suitable SNR-EP5804 configuration for your application.
